SCP92

Toyota BELTA · 2005 · 3,220 parts · 172 categories

3,220 items

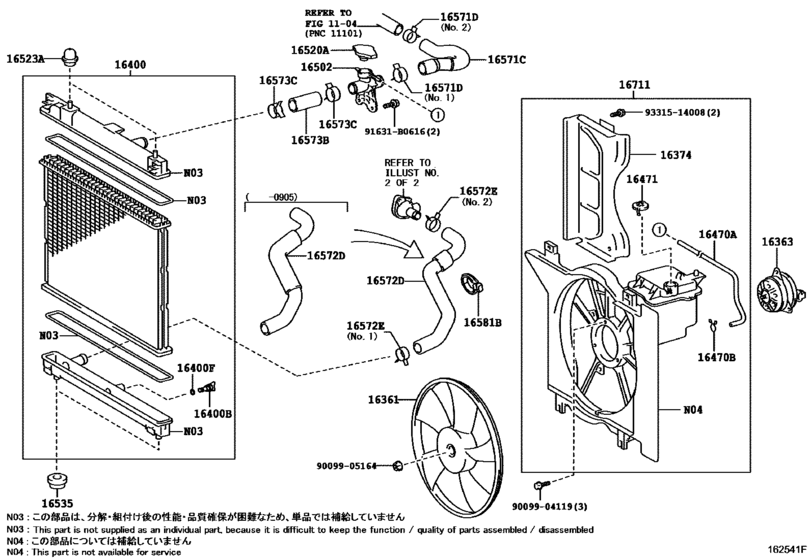

Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE) 53

#	OEM	Part name
16260	16260-23041	Hose Assy, Water By-Pass
16260	16260-23042	Hose Assy, Water By-Pass
16261	96134-41900	Clip Or Clamp(For Ventilation Hose)
16261	90467-14037	Clip Or Clamp(For Ventilation Hose)
16283	90464-00887	Clamp Or Clip(For Water By-Pass Hose)
16321	16321-23010	Inlet, Water
16321	16321-23041	Inlet, Water
16321	90179-06299	Nut, Wire Adjusting, No.1
16321	91671-80630	Bolt(For Cylinder Head Cover)
16321	92132-80625	Bolt, Stud(For Cylinder Head Cover Set)
16321	16321-23040	Inlet, Water
16331	90916-03122	Thermostat
16341	16341-35010	Gasket, Water Outlet
16361	16361-23070	Fan
16363	16363-28150	Motor, Cooling Fan
16374	16366-40010	Insulator, Cooling Fan Motor
16381	16381-23060	Bar, Fan Belt Adjusting
16385	16385-23030	Slider, Fan Belt Adjusting
16400	16400-23160	Radiator Assy
16400	16400-23161	RADIATOR ASSY
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16470	90445-12078	Hose(For Radiator Breather)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16471	16471-23030	Cap Sub-Assy, Reserve Tank
16502	16502-23010	Filler Sub-Assy, Water
16520	16401-31480	Cap Sub-Assy, Radiator
16520	16401-31520	Radiator Cap Sub-Assy (108kPa)
16520	16401-36020	Cap Sub-Assy, Radiator
16520	16401-62100	Cap Sub-Assy, Radiator
16523	16523-21030	Cushion, Radiator Support
16535	90480-22025	Cushion, Intercooler Support
16571	16571-23080	Hose, Radiator, No.1
16571	90466-30001	Clip Or Clamp(For Ventilation Hose)
16571	90467-33006	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-23080	Hose, Radiator, No.2
16572	16572-23081	Hose, Radiator, No.2
16572	90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)
16573	16573-23010	Hose, Radiator, No.3
16581	90469-41001	Clamp, Hose(For Radiator Hose)
16581	16581-40030	Clamp, Hose(For Water Hose)
16711	16711-23090	Shroud, Fan
91631	91631-B0616	BOLT WWASHER
9009904119	90099-04119	BOLT WASHER HEAD
9009905164	90099-05164	Nut
9010508433	90105-08433	BOLT FLANGE
9011606145	90116-06145	Bolt, Stud(For Oil Pan)
9041314018	90413-14018	New Genuine Part
9155180620	91551-80620	Bolt
9167180825	91671-80825	Bolt, Compressor, No.1
9167180845	91671-80845	Bolt, No.2(For Alternator)
9331514008	93315-14008	New Genuine Part
9613551300	96135-51300	Clamp, Hose

OEM	Part name	Category
16260-23041	Hose Assy, Water By-Pass	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16260-23042	Hose Assy, Water By-Pass	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16321-23010	Inlet, Water	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16321-23040	Inlet, Water	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16321-23041	Inlet, Water	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16341-35010	Gasket, Water Outlet	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16361-23070	Fan	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16363-28150	Motor, Cooling Fan	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16366-40010	Insulator, Cooling Fan Motor	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16381-23060	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16385-23030	Slider, Fan Belt Adjusting	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16400-23160	Radiator Assy	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16400-23161	RADIATOR ASSY	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16401-31480	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16401-31520	Radiator Cap Sub-Assy (108kPa)	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16401-36020	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16401-62100	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16471-23030	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16502-23010	Filler Sub-Assy, Water	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16523-21030	Cushion, Radiator Support	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16571-23080	Hose, Radiator, No.1	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16572-23080	Hose, Radiator, No.2	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16572-23081	Hose, Radiator, No.2	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16573-23010	Hose, Radiator, No.3	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16581-40030	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
16711-23090	Shroud, Fan	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
90099-05164	Nut	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
90105-08433	BOLT FLANGE	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
90116-06145	Bolt, Stud(For Oil Pan)	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
90179-06299	Nut, Wire Adjusting, No.1	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
90413-14018	New Genuine Part	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
90464-00887	Clamp Or Clip(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
90466-30001	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
90467-14037	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
90467-33006	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
90469-41001	Clamp, Hose(For Radiator Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
90480-22025	Cushion, Intercooler Support	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
90916-03122	Thermostat	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
91551-80620	Bolt	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
91631-B0616	BOLT WWASHER	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
91671-80630	Bolt(For Cylinder Head Cover)	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
91671-80825	Bolt, Compressor, No.1	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
91671-80845	Bolt, No.2(For Alternator)	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
92132-80625	Bolt, Stud(For Cylinder Head Cover Set)	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
93315-14008	New Genuine Part	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
96134-41900	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
96135-51300	Clamp, Hose	Radiator & Water Outlet ([11.2005 - ] (0511- )2SZFE)
