Search › Model › SCP92

SCP92

Toyota BELTA · 2005 · 3,220 parts · 172 categories

3,220 items

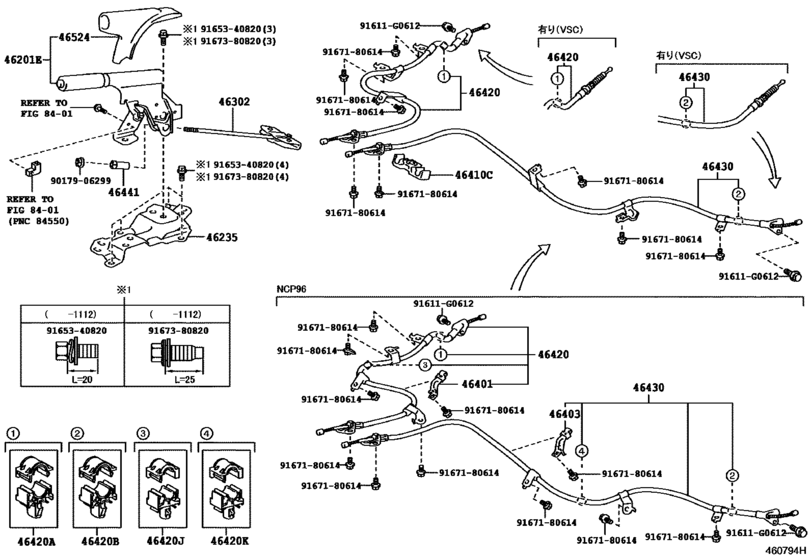

Parking Brake & Cable ([11.2005 - ] (0511- )) 23

#	OEM	Part name
46201	46201-52070-B0	Lever Sub-Assy, Parking Brake
46201	46201-52070-E0	Lever Sub-Assy, Parking Brake
46201	46201-52080-E0	Lever Sub-Assy, Parking Brake
46201	46201-52090-B0	Lever Sub-Assy, Parking Brake
46201	46201-52090-E0	Lever Sub-Assy, Parking Brake
46201	46201-52100-E0	Lever Sub-Assy, Parking Brake
46235	46235-52020	Bracket, Parking Brake Lever Support
46302	46302-52030	Rod Sub-Assy, Parking Brake Pull, No.1
46410	46411-52030	Clamp(For Parking Brake Front Cable)
46420	46420-52210	Cable Assy, Parking Brake, No.2
46420	46420-52211	Cable Assy, Parking Brake, No.2
46420	46402-52010	Clamp, No.1(For Parking Brake Cable)
46420	46402-52030	Clamp, No.1(For Parking Brake Cable)
46420	46420-52190	Cable Assy, Parking Brake, No.2
46430	46430-52210	Cable Assy, Parking Brake, No.3
46430	46430-52190	Cable Assy, Parking Brake, No.3
46441	46441-52010	Nut, Wire Adjusting, No.1
46524	46524-52020	Cover, Parking Brake Dust
91611	91611-G0612	Bolt
9017906299	90179-06299	Nut, Wire Adjusting, No.1
9165340820	91653-40820	BOLT, W/WASHER
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9167380820	91673-80820	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
46201-52070-B0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([11.2005 - ] (0511- ))
46201-52070-E0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([11.2005 - ] (0511- ))
46201-52080-E0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([11.2005 - ] (0511- ))
46201-52090-B0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([11.2005 - ] (0511- ))
46201-52090-E0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([11.2005 - ] (0511- ))
46201-52100-E0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([11.2005 - ] (0511- ))
46235-52020	Bracket, Parking Brake Lever Support	Parking Brake & Cable ([11.2005 - ] (0511- ))
46302-52030	Rod Sub-Assy, Parking Brake Pull, No.1	Parking Brake & Cable ([11.2005 - ] (0511- ))
46402-52010	Clamp, No.1(For Parking Brake Cable)	Parking Brake & Cable ([11.2005 - ] (0511- ))
46402-52030	Clamp, No.1(For Parking Brake Cable)	Parking Brake & Cable ([11.2005 - ] (0511- ))
46411-52030	Clamp(For Parking Brake Front Cable)	Parking Brake & Cable ([11.2005 - ] (0511- ))
46420-52190	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([11.2005 - ] (0511- ))
46420-52210	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([11.2005 - ] (0511- ))
46420-52211	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([11.2005 - ] (0511- ))
46430-52190	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([11.2005 - ] (0511- ))
46430-52210	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([11.2005 - ] (0511- ))
46441-52010	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([11.2005 - ] (0511- ))
46524-52020	Cover, Parking Brake Dust	Parking Brake & Cable ([11.2005 - ] (0511- ))
90179-06299	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([11.2005 - ] (0511- ))
91611-G0612	Bolt	Parking Brake & Cable ([11.2005 - ] (0511- ))
91653-40820	BOLT, W/WASHER	Parking Brake & Cable ([11.2005 - ] (0511- ))
91671-80614	Bolt (For Transmission Control Cable Bracket)	Parking Brake & Cable ([11.2005 - ] (0511- ))
91673-80820	Bolt (For Transmission Control Cable Bracket)	Parking Brake & Cable ([11.2005 - ] (0511- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 172
Collected: 2026-08-02
