SCP92

Toyota BELTA · 2005 · 3,220 parts · 172 categories

← Back to categories

3,220 items

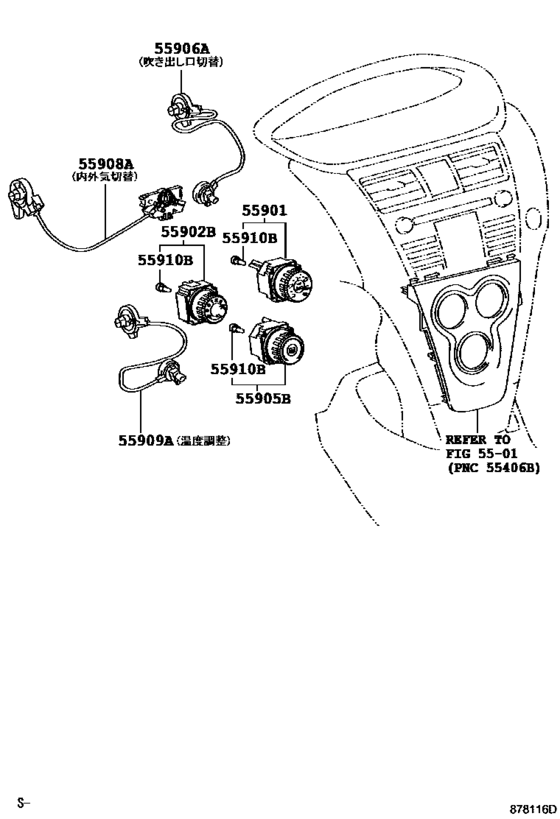

Heating & Air Conditioning - Control & Air Duct ([11.2005 - ] ﾋｰﾀｺﾝﾄﾛｰﾙ---ﾏﾆｭｱﾙ (0511- )X) 13

#	OEM	Part name
55901	55901-52190	Base Sub-Assy, Heater Control
55901	55901-52330	Base Sub-Assy, Heater Control
55902	55902-52060	Control Sub-Assy, Heater
55902	55902-52160	Control Sub-Assy, Heater
55905	55903-52150	Knob, Heater Control, No.2
55905	55903-52160	Knob, Heater Control, No.2
55905	55903-52470	Knob, Heater Control, No.2
55905	55903-52480	Knob, Heater Control, No.2
55905	55903-52450	Knob, Heater Control, No.2
55906	55906-52132	Cable Sub-Assy, Defroster Damper Control
55908	55908-52130	Cable Sub-Assy, Air Inlet Damper Control
55909	55909-52120	Cable Sub-Assy, Temperature Damper Control
55910	90010-01113	Bulb, Heater Control Sub-Assy, No.1

OEM	Part name	Category
55901-52190	Base Sub-Assy, Heater Control	Heating & Air Conditioning - Control & Air Duct ([11.2005 - ] ﾋｰﾀｺﾝﾄﾛｰﾙ---ﾏﾆｭｱﾙ (0511- )X)
55901-52330	Base Sub-Assy, Heater Control	Heating & Air Conditioning - Control & Air Duct ([11.2005 - ] ﾋｰﾀｺﾝﾄﾛｰﾙ---ﾏﾆｭｱﾙ (0511- )X)
55902-52060	Control Sub-Assy, Heater	Heating & Air Conditioning - Control & Air Duct ([11.2005 - ] ﾋｰﾀｺﾝﾄﾛｰﾙ---ﾏﾆｭｱﾙ (0511- )X)
55902-52160	Control Sub-Assy, Heater	Heating & Air Conditioning - Control & Air Duct ([11.2005 - ] ﾋｰﾀｺﾝﾄﾛｰﾙ---ﾏﾆｭｱﾙ (0511- )X)
55903-52150	Knob, Heater Control, No.2	Heating & Air Conditioning - Control & Air Duct ([11.2005 - ] ﾋｰﾀｺﾝﾄﾛｰﾙ---ﾏﾆｭｱﾙ (0511- )X)
55903-52160	Knob, Heater Control, No.2	Heating & Air Conditioning - Control & Air Duct ([11.2005 - ] ﾋｰﾀｺﾝﾄﾛｰﾙ---ﾏﾆｭｱﾙ (0511- )X)
55903-52450	Knob, Heater Control, No.2	Heating & Air Conditioning - Control & Air Duct ([11.2005 - ] ﾋｰﾀｺﾝﾄﾛｰﾙ---ﾏﾆｭｱﾙ (0511- )X)
55903-52470	Knob, Heater Control, No.2	Heating & Air Conditioning - Control & Air Duct ([11.2005 - ] ﾋｰﾀｺﾝﾄﾛｰﾙ---ﾏﾆｭｱﾙ (0511- )X)
55903-52480	Knob, Heater Control, No.2	Heating & Air Conditioning - Control & Air Duct ([11.2005 - ] ﾋｰﾀｺﾝﾄﾛｰﾙ---ﾏﾆｭｱﾙ (0511- )X)
55906-52132	Cable Sub-Assy, Defroster Damper Control	Heating & Air Conditioning - Control & Air Duct ([11.2005 - ] ﾋｰﾀｺﾝﾄﾛｰﾙ---ﾏﾆｭｱﾙ (0511- )X)
55908-52130	Cable Sub-Assy, Air Inlet Damper Control	Heating & Air Conditioning - Control & Air Duct ([11.2005 - ] ﾋｰﾀｺﾝﾄﾛｰﾙ---ﾏﾆｭｱﾙ (0511- )X)
55909-52120	Cable Sub-Assy, Temperature Damper Control	Heating & Air Conditioning - Control & Air Duct ([11.2005 - ] ﾋｰﾀｺﾝﾄﾛｰﾙ---ﾏﾆｭｱﾙ (0511- )X)
90010-01113	Bulb, Heater Control Sub-Assy, No.1	Heating & Air Conditioning - Control & Air Duct ([11.2005 - ] ﾋｰﾀｺﾝﾄﾛｰﾙ---ﾏﾆｭｱﾙ (0511- )X)
