Search › Model › SCP92

SCP92

Toyota BELTA · 2005 · 3,220 parts · 172 categories

3,220 items

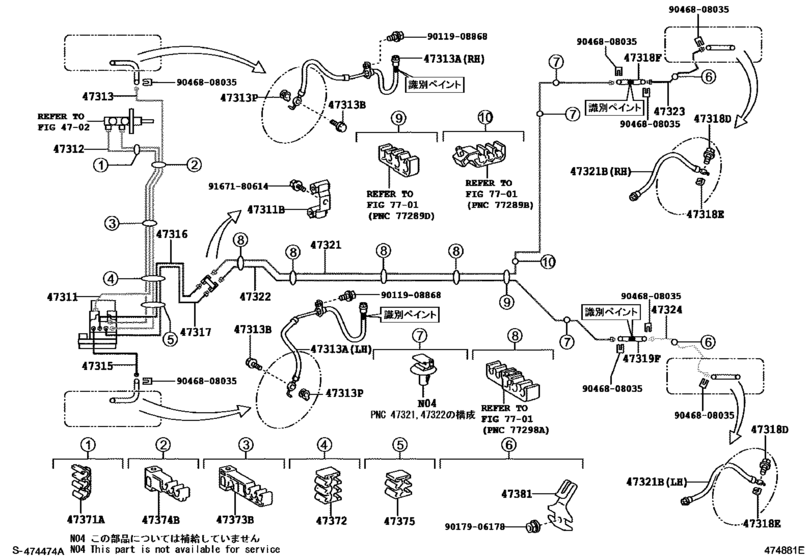

Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G) 61

#	OEM	Part name
44510	44050-52660	Actuator Assy, Brake
44510	44050-52680	Actuator Assy, Brake
44510	44050-52J80	Actuator Assy, Brake
44545	44545-42090	Holder, Brake Actuator Bolt
44545	44545-63010	Bolt, Union(For Brake Actuator)
44546	44546-12110	Cushion, Brake Actuator Bolt
44546	44546-17050	Cushion, Brake Actuator Bolt
44546	44546-63010	Spacer, Air Inlet
44590	44590-52120	Bracket Assy, Brake Actuator
44590	44590-52150	Bracket Assy, Brake Actuator
44590	44590-52180	Bracket Assy, Brake Actuator
47311	47311-52221	Tube, Front Brake, No.1
47311	47311-52231	Tube, Front Brake, No.1
47311	47311-52370	Tube, Front Brake, No.1
47311	90412-10260	Way, No.1(For Front Brake Tube)
47312	47312-52201	Tube, Front Brake, No.2
47312	47312-52211	Tube, Front Brake, No.2
47312	47312-52330	Tube, Front Brake, No.2
47313	47313-52110	Tube, Front Brake, No.3
47313	47313-52120	Tube, Front Brake, No.3
47313	47313-52160	Tube, Front Brake, No.3
47313	90947-02E07	Hose, Flexible, No.1(For Front)
47313	90947-02E08	Hose, Flexible, No.1(For Front)
47313	90947-02G34	Hose, Flexible, No.1(For Front)
47313	90947-02G35	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47315	47315-52140	Tube, Front Brake, No.5
47315	47315-52150	Tube, Front Brake, No.5
47315	47315-52190	Tube, Front Brake, No.5
47316	47316-52100	Tube, Front Brake, No.6
47316	47316-52110	Tube, Front Brake, No.6
47316	47316-52150	Tube, Front Brake, No.6
47317	47317-52100	Tube, Front Brake, No.7
47317	47317-52110	Tube, Front Brake, No.7
47317	47317-52150	Tube, Front Brake, No.7
47318	90947-02E09	Hose, Clutch
47318	90947-02G36	Hose, Flexible(For Rear Rh)
47319	90947-02E10	Hose, Flexible(For Rear Lh)
47319	90947-02G38	Hose, Flexible(For Rear Lh)
47321	47321-52320	Tube, Rear Brake, No.1
47321	90947-02E11	Hose, Flexible(For Rear Brake Tube)
47322	47322-52300	Tube, Rear Brake, No.2
47323	47323-52100	Tube, Rear Brake, No.3
47323	47323-52110	Tube, Rear Brake, No.3
47324	47324-52090	Tube, Rear Brake, No.4
47324	47324-52100	Tube, Rear Brake, No.4
47371	90464-00868	Clamp, Brake Tube, No.1
47372	90949-01969	Clamp, Brake Tube, No.6
47372	90080-46365	Clamp, Brake Tube, No.5
47373	90949-01D27	Clamp, Brake Tube, No.3
47374	90949-01D02	Clamp, Brake Tube, No.2
47375	90464-00883	Clamp, Brake Tube, No.7
47381	47381-52020	Bracket, Brake Tube Clamp No.1
9009905278	90099-05278	New Genuine Part
9011908868	90119-08868	BOLT WWASHER
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9163160825	91631-60825	BOLT WWASHER
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
44050-52660	Actuator Assy, Brake	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
44050-52680	Actuator Assy, Brake	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
44050-52J80	Actuator Assy, Brake	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
44545-42090	Holder, Brake Actuator Bolt	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
44545-63010	Bolt, Union(For Brake Actuator)	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
44546-12110	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
44546-17050	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
44546-63010	Spacer, Air Inlet	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
44590-52120	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
44590-52150	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
44590-52180	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47311-52221	Tube, Front Brake, No.1	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47311-52231	Tube, Front Brake, No.1	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47311-52370	Tube, Front Brake, No.1	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47312-52201	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47312-52211	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47312-52330	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47313-52110	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47313-52120	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47313-52160	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47315-52140	Tube, Front Brake, No.5	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47315-52150	Tube, Front Brake, No.5	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47315-52190	Tube, Front Brake, No.5	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47316-52100	Tube, Front Brake, No.6	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47316-52110	Tube, Front Brake, No.6	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47316-52150	Tube, Front Brake, No.6	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47317-52100	Tube, Front Brake, No.7	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47317-52110	Tube, Front Brake, No.7	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47317-52150	Tube, Front Brake, No.7	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47321-52320	Tube, Rear Brake, No.1	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47322-52300	Tube, Rear Brake, No.2	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47323-52100	Tube, Rear Brake, No.3	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47323-52110	Tube, Rear Brake, No.3	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47324-52090	Tube, Rear Brake, No.4	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47324-52100	Tube, Rear Brake, No.4	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47381-52020	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90080-46365	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90099-05278	New Genuine Part	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90179-06178	Nut (For Rear Wiper Arm Setting)	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90412-10260	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90464-00868	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90464-00883	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90468-08035	CLIP	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90947-02E07	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90947-02E08	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90947-02E09	Hose, Clutch	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90947-02E10	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90947-02E11	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90947-02G34	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90947-02G35	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90947-02G36	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90947-02G38	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90949-01969	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90949-01D02	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
90949-01D27	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
91631-60825	BOLT WWASHER	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([11.2005 - ] ｱﾘ(VSC) (0511- )SCP92..G)
