SCP92

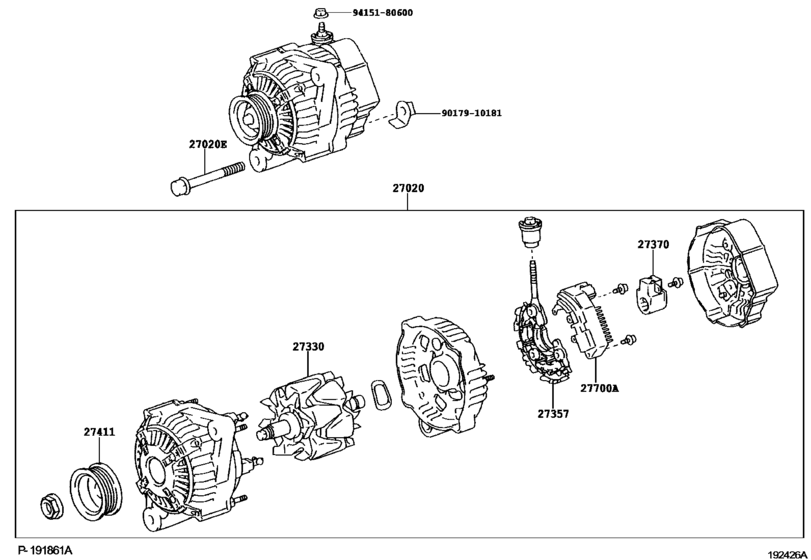

Alternator ([11.2005 - ] 12V 80A (0511- )2SZFE) 11
| # | OEM | Part name |
|---|---|---|
| 27020 | 27060-23130 | Alternator Assy |
| 27020 | 27060-23131 | Alternator Assy |
| 27020 | 90105-10468 | Bolt(For Alternator) |
| 27330 | 27330-30130 | Rotor Assy, Alternator |
| 27330 | 27330-62220 | Rotor Assy, Alternator |
| 27357 | 27357-22200 | Holder, Alternator, W/rectifier |
| 27370 | 27370-23120 | Holder Assy, Alternator Brush |
| 27411 | 27411-22210 | Pulley, Alternator |
| 27700 | 27700-23040 | Regulator Assy, Generator |
| 9017910181 | 90179-10181 | New Genuine Part |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 27060-23130 | Alternator Assy | Alternator ([11.2005 - ] 12V 80A (0511- )2SZFE) |
| 27060-23131 | Alternator Assy | Alternator ([11.2005 - ] 12V 80A (0511- )2SZFE) |
| 27330-30130 | Rotor Assy, Alternator | Alternator ([11.2005 - ] 12V 80A (0511- )2SZFE) |
| 27330-62220 | Rotor Assy, Alternator | Alternator ([11.2005 - ] 12V 80A (0511- )2SZFE) |
| 27357-22200 | Holder, Alternator, W/rectifier | Alternator ([11.2005 - ] 12V 80A (0511- )2SZFE) |
| 27370-23120 | Holder Assy, Alternator Brush | Alternator ([11.2005 - ] 12V 80A (0511- )2SZFE) |
| 27411-22210 | Pulley, Alternator | Alternator ([11.2005 - ] 12V 80A (0511- )2SZFE) |
| 27700-23040 | Regulator Assy, Generator | Alternator ([11.2005 - ] 12V 80A (0511- )2SZFE) |
| 90105-10468 | Bolt(For Alternator) | Alternator ([11.2005 - ] 12V 80A (0511- )2SZFE) |
| 90179-10181 | New Genuine Part | Alternator ([11.2005 - ] 12V 80A (0511- )2SZFE) |
| 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Alternator ([11.2005 - ] 12V 80A (0511- )2SZFE) |
