Search › Model › SCP92
SCP92

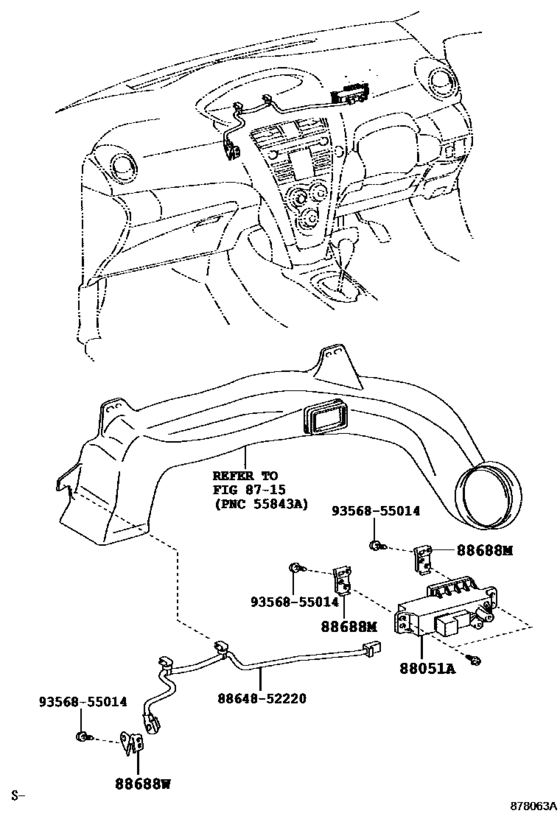

Air Purifier Or Ion Generator ([11.2005 - ] ｼﾞﾖｷﾝｲｵﾝ & ﾏｲﾅｽｲｵﾝﾊﾂｾｲｿｳﾁ (0511- )) 5
| # | OEM | Part name |
|---|---|---|
| 88051 | 88051-22010 | Generator Sub-Assy,ion |
| 88688 | 88688-52280 | Bracket, Air Purifier, No.2 |
| 88688 | 88688-52290 | Bracket, Air Purifier, No.1 |
| 8864852220 | 88648-52220 | Wiring, Cooler, No.1 |
| 9356855014 | 93568-55014 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 88051-22010 | Generator Sub-Assy,ion | Air Purifier Or Ion Generator ([11.2005 - ] ｼﾞﾖｷﾝｲｵﾝ & ﾏｲﾅｽｲｵﾝﾊﾂｾｲｿｳﾁ (0511- )) |
| 88648-52220 | Wiring, Cooler, No.1 | Air Purifier Or Ion Generator ([11.2005 - ] ｼﾞﾖｷﾝｲｵﾝ & ﾏｲﾅｽｲｵﾝﾊﾂｾｲｿｳﾁ (0511- )) |
| 88688-52280 | Bracket, Air Purifier, No.2 | Air Purifier Or Ion Generator ([11.2005 - ] ｼﾞﾖｷﾝｲｵﾝ & ﾏｲﾅｽｲｵﾝﾊﾂｾｲｿｳﾁ (0511- )) |
| 88688-52290 | Bracket, Air Purifier, No.1 | Air Purifier Or Ion Generator ([11.2005 - ] ｼﾞﾖｷﾝｲｵﾝ & ﾏｲﾅｽｲｵﾝﾊﾂｾｲｿｳﾁ (0511- )) |
| 93568-55014 | Screw | Air Purifier Or Ion Generator ([11.2005 - ] ｼﾞﾖｷﾝｲｵﾝ & ﾏｲﾅｽｲｵﾝﾊﾂｾｲｿｳﾁ (0511- )) |
