Search › Model › SCP92
SCP92

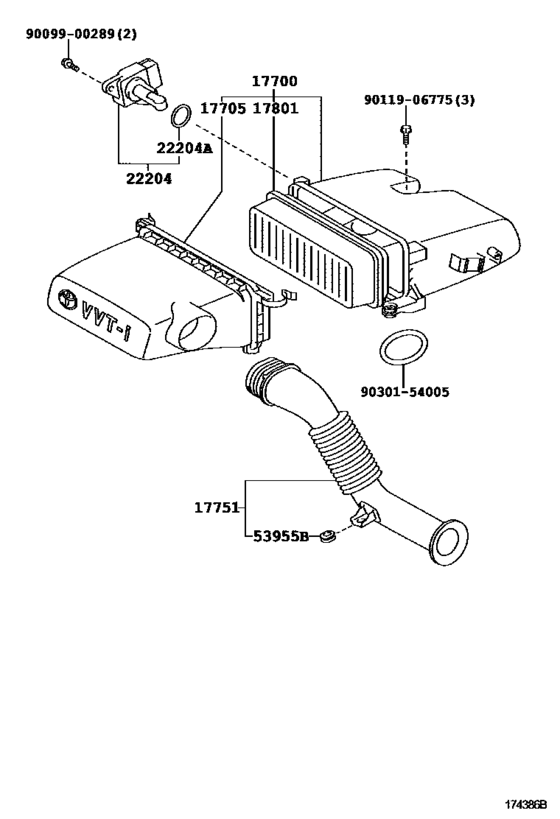

Air Cleaner ([11.2005 - ] (0511- )2SZFE) 11
| # | OEM | Part name |
|---|---|---|
| 17700 | 17700-23082 | Cleaner Assy, Air |
| 17705 | 17705-23060 | Cap Sub-Assy, Air Cleaner |
| 17751 | 17751-23040 | Inlet, Air Cleaner, No.1 |
| 17801 | 17801-23030 | Element Sub-Assy, Air Cleaner Filter |
| 22204 | 22204-0C020 | Meter Sub-Assy, Intake Air Flow |
| 22204 | 22204-22010 | Meter Sub-Assy, Intake Air Flow |
| 22204 | 90099-14141 | Ring, O(For Intake Air Flow Meter) |
| 53955 | 53955-52010 | Cushion, Air Cleaner Inlet, No.1 |
| 9009900289 | 90099-00289 | SCREW |
| 9011906775 | 90119-06775 | BOLT WWASHER |
| 9030154005 | 90301-54005 | RING O |
| OEM | Part name | Category |
|---|---|---|
| 17700-23082 | Cleaner Assy, Air | Air Cleaner ([11.2005 - ] (0511- )2SZFE) |
| 17705-23060 | Cap Sub-Assy, Air Cleaner | Air Cleaner ([11.2005 - ] (0511- )2SZFE) |
| 17751-23040 | Inlet, Air Cleaner, No.1 | Air Cleaner ([11.2005 - ] (0511- )2SZFE) |
| 17801-23030 | Element Sub-Assy, Air Cleaner Filter | Air Cleaner ([11.2005 - ] (0511- )2SZFE) |
| 22204-0C020 | Meter Sub-Assy, Intake Air Flow | Air Cleaner ([11.2005 - ] (0511- )2SZFE) |
| 22204-22010 | Meter Sub-Assy, Intake Air Flow | Air Cleaner ([11.2005 - ] (0511- )2SZFE) |
| 53955-52010 | Cushion, Air Cleaner Inlet, No.1 | Air Cleaner ([11.2005 - ] (0511- )2SZFE) |
| 90099-00289 | SCREW | Air Cleaner ([11.2005 - ] (0511- )2SZFE) |
| 90099-14141 | Ring, O(For Intake Air Flow Meter) | Air Cleaner ([11.2005 - ] (0511- )2SZFE) |
| 90119-06775 | BOLT WWASHER | Air Cleaner ([11.2005 - ] (0511- )2SZFE) |
| 90301-54005 | RING O | Air Cleaner ([11.2005 - ] (0511- )2SZFE) |
