SCP90

Toyota VITZ · 2005 · 3,432 parts · 221 categories

← Back to categories

3,432 items

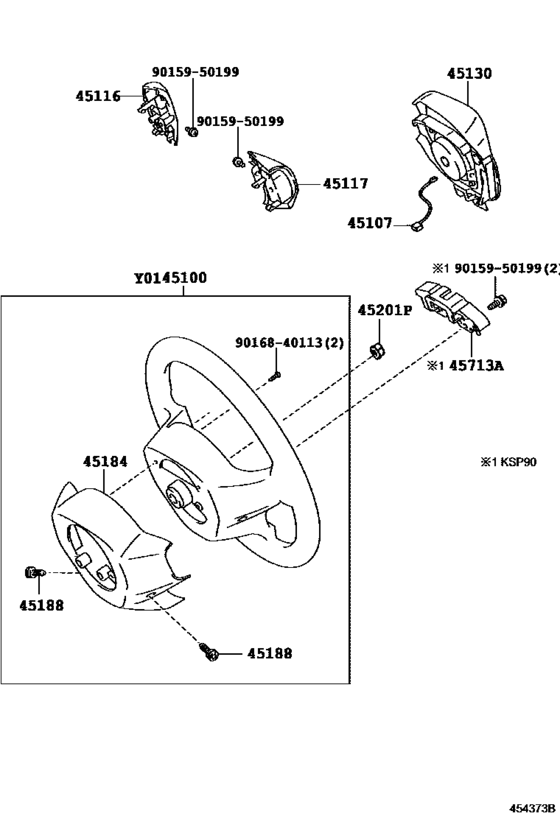

Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F) 16

#	OEM	Part name
45100	45100-52331-B0	Wheel Assy, Steering
45100	45100-52331-E0	Wheel Assy, Steering
45107	45107-48010	Wire Sub-Assy, Horn Button
45116	45116-52020-B1	Ornament, Steering Wheel, No.1
45116	45116-52040-B0	Ornament, Steering Wheel, No.1
45116	45116-52040-B1	Ornament, Steering Wheel, No.1
45117	45117-52030-B0	Ornament, Steering Wheel, No.2
45117	45117-52030-B1	Ornament, Steering Wheel, No.2
45130	45130-52360-B0	Button Assy, Horn
45130	45130-52360-E0	Button Assy, Horn
45184	45184-52090-B0	Cover, Steering Wheel Boss, Lower
45184	45184-52090-E0	Cover, Steering Wheel Boss, Lower
45188	45188-60010	Screw, Steering Wheel Pad Attaching
45201	90179-12071	Nut, Steering Wheel Set
9015950199	90159-50199	SCREW
9016840113	90168-40113	Screw, Steering Wheel Pad Attaching

OEM	Part name	Category
45100-52331-B0	Wheel Assy, Steering	Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F)
45100-52331-E0	Wheel Assy, Steering	Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F)
45107-48010	Wire Sub-Assy, Horn Button	Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F)
45116-52020-B1	Ornament, Steering Wheel, No.1	Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F)
45116-52040-B0	Ornament, Steering Wheel, No.1	Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F)
45116-52040-B1	Ornament, Steering Wheel, No.1	Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F)
45117-52030-B0	Ornament, Steering Wheel, No.2	Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F)
45117-52030-B1	Ornament, Steering Wheel, No.2	Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F)
45130-52360-B0	Button Assy, Horn	Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F)
45130-52360-E0	Button Assy, Horn	Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F)
45184-52090-B0	Cover, Steering Wheel Boss, Lower	Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F)
45184-52090-E0	Cover, Steering Wheel Boss, Lower	Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F)
45188-60010	Screw, Steering Wheel Pad Attaching	Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F)
90159-50199	SCREW	Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F)
90168-40113	Screw, Steering Wheel Pad Attaching	Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F)
90179-12071	Nut, Steering Wheel Set	Steering Wheel ([08.2007 - ] 3-SPOKE,ｱﾘ(ｽﾃｱﾘﾝｸﾞﾎｲｰﾙｵｰﾅﾒﾝﾄ) (0512-0708)ILL ; (0708- )ILL ; (0902- )F)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 221
Collected: 2026-08-04
