Search › Model › SCP90

SCP90

Toyota VITZ · 2005 · 3,432 parts · 221 categories

3,432 items

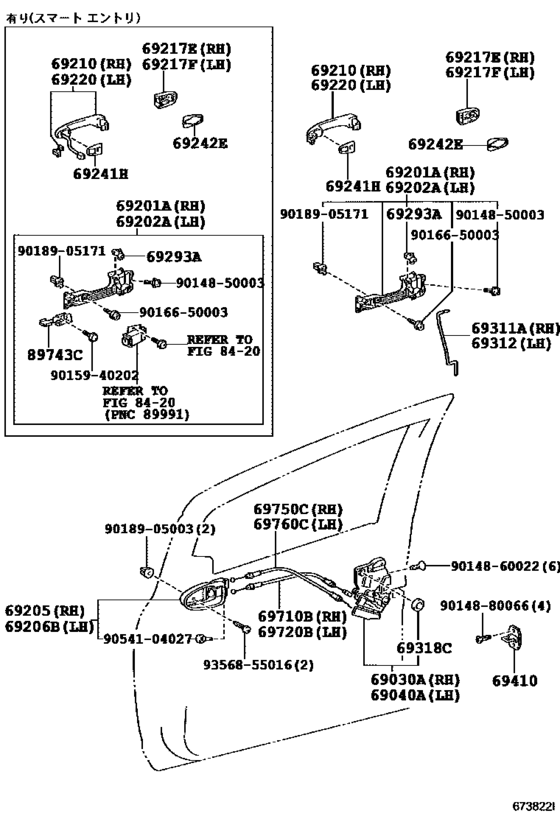

Front Door Lock & Handle ([01.2005 - ] (0501- )) 89

#	OEM	Part name
69030	69030-52290	Lock Assy, Front Door W/motor, Rh
69040	69040-47090	Lock Assy, Front Door W/motor, Lh
69040	69040-52360	Lock Assy, Front Door W/motor, Lh
69201	69201-52040	Frame Sub-Assy, Front Door Outside Handle, Rh
69201	69201-52060	Frame Sub-Assy, Front Door Outside Handle, Rh
69202	69202-52020	Frame Sub-Assy, Front Door Outside Handle, Lh
69202	69202-52040	Frame Sub-Assy, Front Door Outside Handle, Lh
69205	69205-52120-B5	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-52130-E0	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-52120-B5	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-52130-E0	Handle Sub-Assy, Front Door Inside, Lh
69210	69210-12320-A0	Handle Assy, Front Door, Outside Rh
69210	69210-12320-A2	Handle Assy, Front Door, Outside Rh
69210	69210-12320-B2	Handle Assy, Front Door, Outside Rh
69210	69210-12320-B6	Handle Assy, Front Door, Outside Rh
69210	69210-12320-C0	Handle Assy, Front Door, Outside Rh
69210	69210-12320-D2	Handle Assy, Front Door, Outside Rh
69210	69210-12320-J4	Handle Assy, Front Door, Outside Rh
69210	69210-12320-P0	Handle Assy, Front Door, Outside Rh
69210	69211-12220-A0	Handle Assy, Front Door, Outside Rh
69210	69211-12220-A8	Handle Assy, Front Door, Outside Rh
69210	69211-12220-C2	Handle Assy, Front Door, Outside Rh
69210	69211-12220-P3	Handle Assy, Front Door, Outside Rh
69210	69211-12220-P5	Handle Assy, Front Door, Outside Rh
69210	69211-12220-P7	Handle Assy, Front Door, Outside Rh
69210	69211-12220-R5	Handle Assy, Front Door, Outside Rh
69210	69211-12220-X0	Handle Assy, Front Door, Outside Rh
69210	69210-12320-A5	Handle Assy, Front Door, Outside Rh
69210	69210-12320-D8	Handle Assy, Front Door, Outside Rh
69210	69210-12320-E1	Handle Assy, Front Door, Outside Rh
69210	69210-12320-G0	Handle Assy, Front Door, Outside Rh
69210	69210-12320-J5	Handle Assy, Front Door, Outside Rh
69210	69210-12320-K0	Handle Assy, Front Door, Outside Rh
69210	69211-12220-E9	Handle Assy, Front Door, Outside Rh
69210	69211-12220-G1	Handle Assy, Front Door, Outside Rh
69210	69211-12220-K1	Handle Assy, Front Door, Outside Rh
69210	69211-12220-R6	Handle Assy, Front Door, Outside Rh
69210	69211-12220-X6	Handle Assy, Front Door, Outside Rh
69217	69217-42020-A3	Cover, Front Door Outside Handle
69217	69217-42020-A9	Cover, Front Door Outside Handle, Rh
69217	69217-42020-C2	Cover, Front Door Outside Handle
69217	69217-42020-P3	Cover, Front Door Outside Handle, Rh
69217	69217-42020-P5	Cover, Front Door Outside Handle
69217	69217-42020-P7	Cover, Front Door Outside Handle, Rh
69217	69217-42020-R6	Cover, Front Door Outside Handle, Rh
69217	69217-42020-X0	Cover, Front Door Outside Handle
69217	69217-12040-A0	Cover, Front Door Outside Handle
69217	69217-12040-A3	Cover, Front Door Outside Handle, Lh
69217	69217-12040-B7	Cover, Front Door Outside Handle, Lh
69217	69217-12040-C2	Cover, Back Door Outside Handle
69217	69217-12040-D5	Cover, Front Door Outside Handle
69217	69217-12040-P0	Cover, Back Door Outside Handle
69217	69217-12040-P3	Cover, Front Door Outside Handle, Lh
69217	69217-12040-R2	Cover, Front Door Outside Handle, Lh
69217	69217-42020-04	Cover, Front Door Outside Handle
69217	69217-42020-G0	Cover, Front Door Outside Handle
69217	69217-42020-K1	Cover, Front Door Outside Handle, Rh
69217	69217-42020-L1	Cover, Front Door Outside Handle, Rh
69217	69217-42020-R7	Cover, Front Door Outside Handle, Rh
69217	69217-42020-X6	Cover, Front Door Outside Handle, Rh
69217	69217-12040-A9	Cover, Back Door Outside Handle
69217	69217-12040-E5	Cover, Front Door Outside Handle, Lh
69217	69217-12040-G3	Cover, Front Door Outside Handle, Lh
69217	69217-12040-K1	Cover, Front Door Outside Handle, Lh
69217	69217-12040-R3	Cover, Front Door Outside Handle, Lh
69217	69217-12040-X1	Cover, Front Door Outside Handle, Lh
69241	69241-42020	Pad, Front Door Outside Handle, Rh
69242	69242-52020	Pad, Front Door Outside Handle, Rear
69242	69242-42010	Pad, Front Door Outside Handle, Lh
69293	69293-12030	Snap, Front Door Outside Handle
69293	69293-12040	Snap, Front Door Outside Handle
69311	69311-52130	Rod, Front Door Lock Open, Rh
69312	69312-52120	Rod, Front Door Lock Open, Lh
69318	69318-47010	Seal, Front Door Lock Hole, Rh
69410	69410-33010	Plate Assy, Front Door Lock Striker
69710	69710-52120	Cable Assy, Front Door Lock Remote Control, Rh
69750	69750-52050	Cable Assy, Front Door Inside Locking, Rh
89743	89743-47010	Bracket, Electrical Key Wire Harness
89743	89743-47020	Bracket, Electrical Key Wire Harness
9014850003	90148-50003	Screw Hex Lobular
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014880066	90148-80066	SCREW HEXALOBULAR
9015940202	90159-40202	SCREW WWASHER
9016650003	90166-50003	New Genuine Part
9018905003	90189-05003	CLIP
9018905171	90189-05171	New Genuine Part
9054104027	90541-04027	Cushion(For Front Door Inside Handle)
9356855016	93568-55016	Screw

OEM	Part name	Category
69030-52290	Lock Assy, Front Door W/motor, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69040-47090	Lock Assy, Front Door W/motor, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69040-52360	Lock Assy, Front Door W/motor, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69201-52040	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69201-52060	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69202-52020	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69202-52040	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69205-52120-B5	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69205-52130-E0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69206-52120-B5	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69206-52130-E0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69210-12320-A0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69210-12320-A2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69210-12320-A5	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69210-12320-B2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69210-12320-B6	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69210-12320-C0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69210-12320-D2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69210-12320-D8	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69210-12320-E1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69210-12320-G0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69210-12320-J4	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69210-12320-J5	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69210-12320-K0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69210-12320-P0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69211-12220-A0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69211-12220-A8	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69211-12220-C2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69211-12220-E9	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69211-12220-G1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69211-12220-K1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69211-12220-P3	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69211-12220-P5	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69211-12220-P7	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69211-12220-R5	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69211-12220-R6	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69211-12220-X0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69211-12220-X6	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-12040-A0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-12040-A3	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-12040-A9	Cover, Back Door Outside Handle	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-12040-B7	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-12040-C2	Cover, Back Door Outside Handle	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-12040-D5	Cover, Front Door Outside Handle	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-12040-E5	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-12040-G3	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-12040-K1	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-12040-P0	Cover, Back Door Outside Handle	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-12040-P3	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-12040-R2	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-12040-R3	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-12040-X1	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-42020-04	Cover, Front Door Outside Handle	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-42020-A3	Cover, Front Door Outside Handle	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-42020-A9	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-42020-C2	Cover, Front Door Outside Handle	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-42020-G0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-42020-K1	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-42020-L1	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-42020-P3	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-42020-P5	Cover, Front Door Outside Handle	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-42020-P7	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-42020-R6	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-42020-R7	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-42020-X0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69217-42020-X6	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69241-42020	Pad, Front Door Outside Handle, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69242-42010	Pad, Front Door Outside Handle, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69242-52020	Pad, Front Door Outside Handle, Rear	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69293-12030	Snap, Front Door Outside Handle	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69293-12040	Snap, Front Door Outside Handle	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69311-52130	Rod, Front Door Lock Open, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69312-52120	Rod, Front Door Lock Open, Lh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69318-47010	Seal, Front Door Lock Hole, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69410-33010	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69710-52120	Cable Assy, Front Door Lock Remote Control, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
69750-52050	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([01.2005 - ] (0501- ))
89743-47010	Bracket, Electrical Key Wire Harness	Front Door Lock & Handle ([01.2005 - ] (0501- ))
89743-47020	Bracket, Electrical Key Wire Harness	Front Door Lock & Handle ([01.2005 - ] (0501- ))
90148-50003	Screw Hex Lobular	Front Door Lock & Handle ([01.2005 - ] (0501- ))
90148-60022	BOLT	Front Door Lock & Handle ([01.2005 - ] (0501- ))
90148-80066	SCREW HEXALOBULAR	Front Door Lock & Handle ([01.2005 - ] (0501- ))
90148-A0005	Hexalobular Screw	Front Door Lock & Handle ([01.2005 - ] (0501- ))
90159-40202	SCREW WWASHER	Front Door Lock & Handle ([01.2005 - ] (0501- ))
90166-50003	New Genuine Part	Front Door Lock & Handle ([01.2005 - ] (0501- ))
90189-05003	CLIP	Front Door Lock & Handle ([01.2005 - ] (0501- ))
90189-05171	New Genuine Part	Front Door Lock & Handle ([01.2005 - ] (0501- ))
90541-04027	Cushion(For Front Door Inside Handle)	Front Door Lock & Handle ([01.2005 - ] (0501- ))
93568-55016	Screw	Front Door Lock & Handle ([01.2005 - ] (0501- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 221
Collected: 2026-08-04
