SCP42

Toyota VIOS · 2006 · 2,623 parts · 156 categories

2,623 items

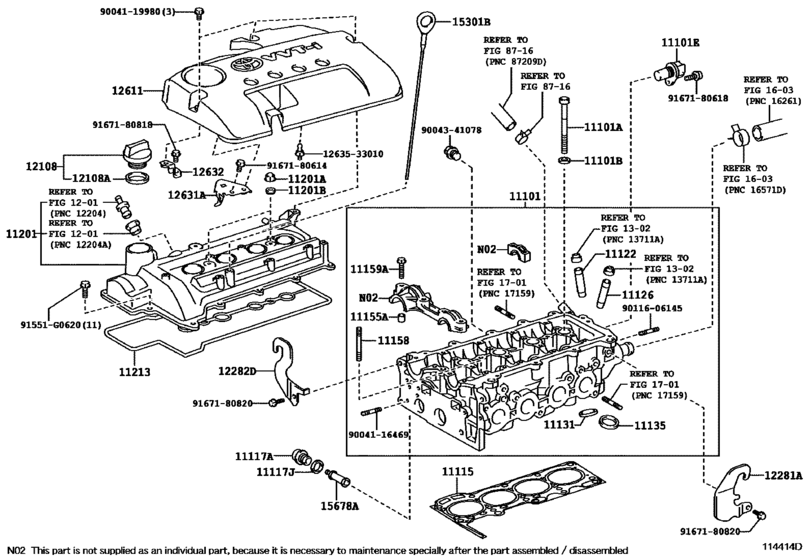

Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE) 45

#	OEM	Part name
11101	11101-B9230	Head Sub-Assy, Cylinder
11101	11101-B9251	Head Sub-Assy, Cylinder
11101	11101-B9250	Head Sub-Assy, Cylinder
11101	90041-10045	Bolt(For Cylinder Head Set)
11101	90910-02143	Bolt(For Cylinder Head Set)
11101	90042-01637	Washer, Plate(For Cylinder Head Set)
11101	90919-05024	Sensor, Cam Position
11115	11115-B1030	Gasket, Cylinder Head
11117	90341-14013	Plug, W/head Taper Screw, No.1
11117	90430-14009	Gasket(For Cylinder Head Screw Plug)
11122	11122-21010	Bush, Intake Valve Guide
11122	11123-21010	Bush, Intake Valve Guide
11131	11131-23020	Seat, Intake Valve
11131	11132-23020	Seat, Intake Valve
11135	11135-23030	Seat, Exhaust Valve
11135	11136-23030	Seat, Exhaust Valve
11155	90042-53010	Pin, Ring(For Camshaft Bearing Cap Setting)
11158	90116-06161	Bolt, Stud(For Head To Cylinder Head Cover)
11159	90041-19911	Bolt(For Head To Camshaft Bearing Cap)
11201	11201-B1020	Cover Sub-Assy, Cylinder Head
11201	11201-B1021	Cover Sub-Assy, Cylinder Head
11201	90176-06028	Nut, Cap(For Cylinder Head Cover)
11201	90210-06013	Washer, Seal(For Cylinder Head Cover)
11213	11213-BZ030	Gasket, Cylinder Head Cover
12108	12180-97401	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
12281	12281-97401	Hanger, Engine, No.1
12282	12282-B4010	Hanger, Engine, No.2
12611	12611-23010	Cover, Engine, No.1
12611	12611-23900	Cover, Engine, No.1
12631	12631-23010	Bracket, Engine Cover
12632	12632-23010	Bracket, Engine Cover, No.2
15301	15301-23060	Gage Sub-Assy, Oil Level
15678	15678-21010	Filter, Oil Control Valve
91551	91551-G0620	New Genuine Part
1263533010	12635-33010	Bracket, V-Bank Cover, No.1 - ENGINE COVER
1263533010	90109-06385	Bolt , V-Bank Cover, No.1
9004116469	90041-16469	New Genuine Part
9004119980	90041-19980	New Genuine Part
9004341078	90043-41078	Ball No.1(For Cylinder Head)
9011606145	90116-06145	Bolt, Stud(For Oil Pan)
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9167180618	91671-80618	BOLT FLANGE WWSHER
9167180818	91671-80818	BOLT FLANGE
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
11101-B9230	Head Sub-Assy, Cylinder	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
11101-B9250	Head Sub-Assy, Cylinder	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
11101-B9251	Head Sub-Assy, Cylinder	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
11115-B1030	Gasket, Cylinder Head	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
11122-21010	Bush, Intake Valve Guide	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
11123-21010	Bush, Intake Valve Guide	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
11131-23020	Seat, Intake Valve	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
11132-23020	Seat, Intake Valve	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
11135-23030	Seat, Exhaust Valve	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
11136-23030	Seat, Exhaust Valve	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
11201-B1020	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
11201-B1021	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
11213-BZ030	Gasket, Cylinder Head Cover	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
12180-97401	Cap Sub-Assy, Oil Filler	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
12281-97401	Hanger, Engine, No.1	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
12282-B4010	Hanger, Engine, No.2	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
12611-23010	Cover, Engine, No.1	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
12611-23900	Cover, Engine, No.1	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
12631-23010	Bracket, Engine Cover	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
12632-23010	Bracket, Engine Cover, No.2	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
12635-33010	Bracket, V-Bank Cover, No.1 - ENGINE COVER	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
15301-23060	Gage Sub-Assy, Oil Level	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
15678-21010	Filter, Oil Control Valve	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90041-10045	Bolt(For Cylinder Head Set)	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90041-16469	New Genuine Part	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90041-19911	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90041-19980	New Genuine Part	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90042-01637	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90042-53010	Pin, Ring(For Camshaft Bearing Cap Setting)	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90043-41078	Ball No.1(For Cylinder Head)	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90109-06385	Bolt , V-Bank Cover, No.1	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90116-06145	Bolt, Stud(For Oil Pan)	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90116-06161	Bolt, Stud(For Head To Cylinder Head Cover)	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90176-06028	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90210-06013	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90341-14013	Plug, W/head Taper Screw, No.1	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90430-14009	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90910-02143	Bolt(For Cylinder Head Set)	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
90919-05024	Sensor, Cam Position	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
91551-G0620	New Genuine Part	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
91671-80618	BOLT FLANGE WWSHER	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
91671-80818	BOLT FLANGE	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Cylinder Head ([08.2006 - ] (0608- )2SZFE,3SZFE)
