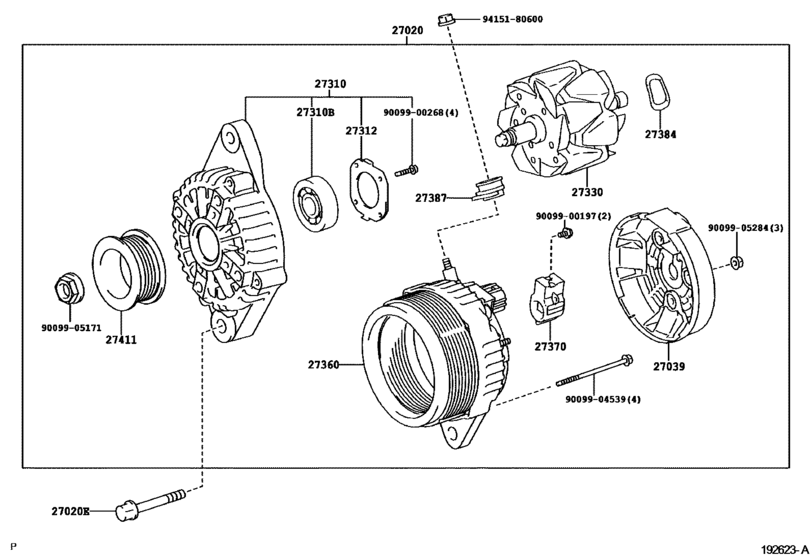

| 27039-0J070 |
Cover, Alternator Rear End |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 27060-0J070 |
Alternator Assy |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 27310-0J070 |
Frame Assy, Drive End, Alternator |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 27312-72100 |
Plate, Bearing Retainer, Alternator |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 27330-0H110 |
Rotor Assy, Alternator |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 27360-0J070 |
Coil Assy, Alternator |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 27370-0H110 |
Holder Assy, Alternator Brush |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 27384-16380 |
Washer |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 27387-0H110 |
Insulator, Alternator Terminal |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 27411-0J070 |
Pulley, Alternator |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 90068-10014 |
Bearing(For Alternator Drive End Frame) |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 90068-10029 |
Bearing(For Alternator Drive End Frame) |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 90099-00197 |
Screw |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 90099-00268 |
Screw(For Alternator Drive End Frame) |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 90099-04539 |
BOLT |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 90099-05171 |
Nut(For Alternator Pulley) |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 90099-05284 |
NUT |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 90105-10548 |
Bolt(For Alternator) |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
| 94151-80600 |
Nut, Cap(For Cylinder Head Cover) |
Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) |
