SCP41

Toyota VIOS · 2006 · 2,598 parts · 164 categories

2,598 items

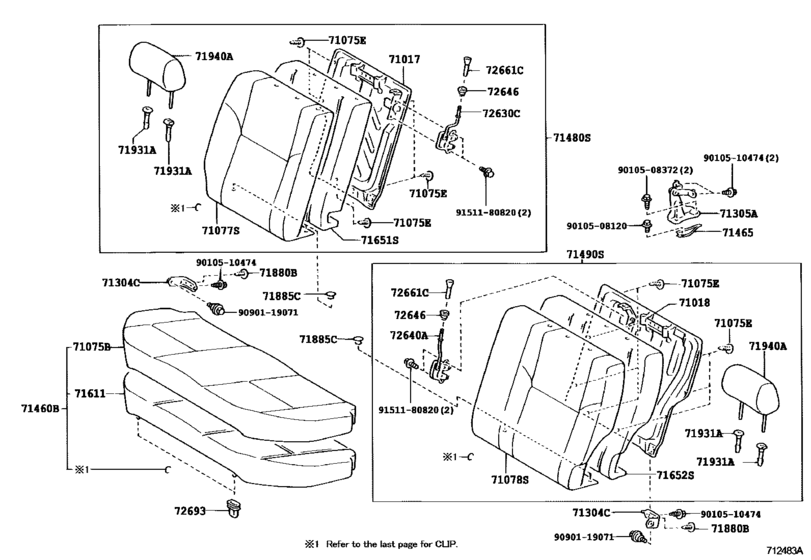

Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#) 30

#	OEM	Part name
71017	71017-0D010	Frame Sub-Assy, Rear Seat Back, Rh
71018	71018-0D010	Frame Sub-Assy, Rear Seat Back, Lh
71075	71075-0D200-A0	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-0D530-A0	Cover, Rear Seat Cushion (For Bench Type)
71075	90467-07080-C0	Clip(For Instrument Lower Cover)
71077	71077-0D210-A0	Cover, Rear Seat Back, Rh (For Separate Type)
71077	71077-0D620-A0	Cover, Rear Seat Back, Rh (For Separate Type)
71078	71078-0D050-A0	Cover, Rear Seat Back, Lh(For Separate Type)
71078	71078-0D230-A0	Cover, Rear Seat Back, Lh(For Separate Type)
71304	71345-0D010	Hinge Sub-Assy, Rear Seat Back, Lh
71305	71305-0D010	Hinge Sub-Assy, Rear Seat Back, Center
71465	71465-0D010	Spring, Rear Seat Cushion, No.5
71611	71503-0D010	Pad, Rear Seat Cushion
71651	71651-0D010	Pad, Rear Seat Back, Rh(For Separate Type)
71652	71652-0D010	Pad, Rear Seat Back, Lh(For Separate Type)
71880	90467-06070-C0	Clip(For Rear Seat Back Carpet)
71885	90467-09156-C0	Clip(For Deck Boad)
71931	71956-47010-A0	Support, Rear Seat Headrest
71931	71970-47010-A0	Support, Rear Seat Headrest
71940	71940-0D140-A0	Headrest Assy, Rear Seat
72630	72630-0D010	Lock Assy, Rear Seat Back, Rh
72640	72640-0D010	Lock Assy, Rear Seat Back, Lh
72646	72646-0D010-A0	Grommet, Rear Seat Back Stop Button
72661	72661-32030-A0	Button, Rear Seat Back Stop Release
72693	72693-12080	Hook, Rear Seat Cushion Lock
9010508120	90105-08120	New Genuine Part
9010508372	90105-08372	BOLT WASHER BASED
9010510474	90105-10474	New Genuine Part
9090119071	90901-19071	New Genuine Part
9151180820	91511-80820	BOLT FLANGE

OEM	Part name	Category
71017-0D010	Frame Sub-Assy, Rear Seat Back, Rh	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
71018-0D010	Frame Sub-Assy, Rear Seat Back, Lh	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
71075-0D200-A0	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
71075-0D530-A0	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
71077-0D210-A0	Cover, Rear Seat Back, Rh (For Separate Type)	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
71077-0D620-A0	Cover, Rear Seat Back, Rh (For Separate Type)	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
71078-0D050-A0	Cover, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
71078-0D230-A0	Cover, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
71305-0D010	Hinge Sub-Assy, Rear Seat Back, Center	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
71345-0D010	Hinge Sub-Assy, Rear Seat Back, Lh	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
71465-0D010	Spring, Rear Seat Cushion, No.5	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
71503-0D010	Pad, Rear Seat Cushion	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
71651-0D010	Pad, Rear Seat Back, Rh(For Separate Type)	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
71652-0D010	Pad, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
71940-0D140-A0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
71956-47010-A0	Support, Rear Seat Headrest	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
71970-47010-A0	Support, Rear Seat Headrest	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
72630-0D010	Lock Assy, Rear Seat Back, Rh	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
72640-0D010	Lock Assy, Rear Seat Back, Lh	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
72646-0D010-A0	Grommet, Rear Seat Back Stop Button	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
72661-32030-A0	Button, Rear Seat Back Stop Release	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
72693-12080	Hook, Rear Seat Cushion Lock	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
90105-08120	New Genuine Part	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
90105-08372	BOLT WASHER BASED	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
90105-10474	New Genuine Part	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
90467-06070-C0	Clip(For Rear Seat Back Carpet)	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
90467-07080-C0	Clip(For Instrument Lower Cover)	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
90467-09156-C0	Clip(For Deck Boad)	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
90901-19071	New Genuine Part	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
91511-80820	BOLT FLANGE	Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#)
