SCP41

Toyota VIOS · 2006 · 2,598 parts · 164 categories
SCP41 ×

← Back to categories

2,598 items

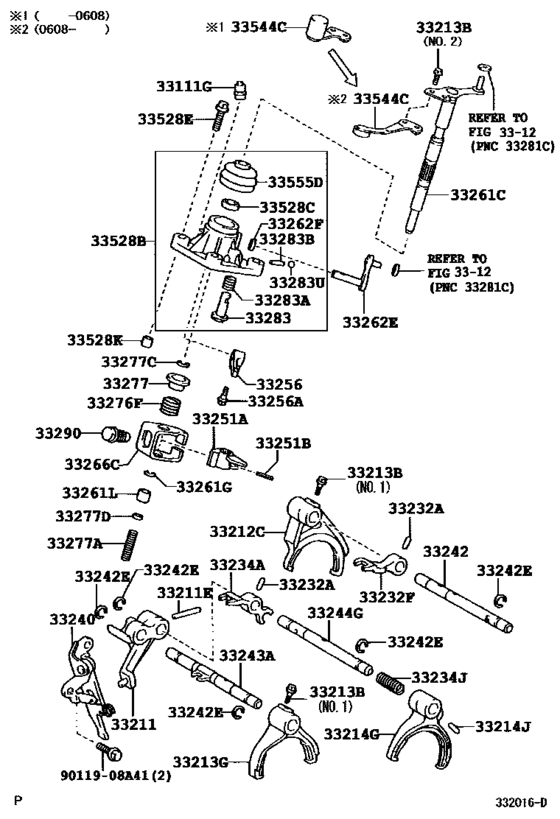

Gear Shift Fork & Lever Shaft (Mtm) ([10.2002 - ] C550 (0210- )AXP4#,SCP4#..MTM) 51
#OEMPart name
33111 90930-C3004 Plug, Breather(For Manual Transmission)
33211 33211-0D030 Fork, Reverse Shift
33211 90250-06032 Pin, Straight(For Reverse Shift Fork)
33211 90250-C0001 Pin, Straight(For Reverse Shift Fork)
33212 33212-52010 Fork, Gear Shift, No.1
33213 90105-06115 Bolt(For Shift Fork Set)
33213 90105-C0103 Bolt(For Shift Fork Set)
33213 33213-52010 Fork, Gear Shift, No.2
33213 33213-52011 Fork, Gear Shift, No.2
33214 33214-52010 Fork, Gear Shift, No.3
33214 33214-52011 Fork, Gear Shift, No.3
33214 90250-06031 Pin, Straight(For 5Th Shift Fork)
33214 90250-C0002 Pin, Straight(For 5Th Shift Fork)
33232 90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)
33232 33232-0D010 Head, Gear Shift, No.1
33234 33234-0D010 Head, Gear Shift, No.3
33234 90501-14161 Spring, Compression (For Shift Return)
33240 33240-0D010 Bracket Assy, Reverse Shift Arm
33242 33242-0D010 Shaft, Gear Shift Fork, No.1
33242 90520-12003 Ring(For Reverse Shift Head)
33243 33243-0D030 Shaft, Gear Shift Fork, No.2
33243 33243-0D050 Shaft, Gear Shift Fork, No.2
33244 33244-0D010 Shaft, Gear Shift Fork, No.3
33251 33251-52010 Lever, Shift, Inner No.1
33251 33251-52070 Lever, Shift, Inner No.1
33251 90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)
33256 33256-0D010 Lever, Select Inner
33256 90109-C0008 Bolt, Set (For Select Inner Lever)
33261 33261-0D020 Shaft, Shift & Select Lever
33261 90520-13002 Ring, Shaft Snap (For Shift Fork Shaft)
33261 90384-15002 Bush, Bimetal Formed(For Outer Select Lever)
33262 33262-0D010 Shaft, Select Lever
33262 90311-16006 Seal, Oil (For Select Lever Shaft)
33266 33266-0D010 Plate, Shift Inter Lock
33276 90501-12195 Spring, Compression, No.1 (For Select Return)
33277 33277-0D010 Seat, Select Spring, No.2
33277 90501-C0006 Spring, Compression, No.2 (For Select Return)
33277 90520-15003 Ring, Shaft Snap (For Select Spring No.1 Seat)
33277 90560-C0001 Spacer (For Select Return Spring)
33283 33283-0D010 Pin, Reverse Restrict, No.1
33283 90508-C0001 Spring, Compression (For Reverse Restrict Pin)
33283 90250-C0004 Pin, Straight (For Reverse Restrict Pin)
33283 90360-C0003 Ball, Reverse Restrict Pin
33290 33290-0H020 Ball Assy, Lock, No.1
33528 33506-0D010 Cover, Control Shaft
33528 90311-18013 Seal, Oil (For Control Shaft Cover)
33528 90119-C0141 Bolt (For Control Shaft Cover)
33528 90253-C0001 Pin, Ring (For Control Shaft Cover Set Bolt)
33544 33544-0D020 Damper, Shift Lever
33555 33555-0D010 Boot, Shift Lever
9011908 90119-08A41 New Genuine Part
