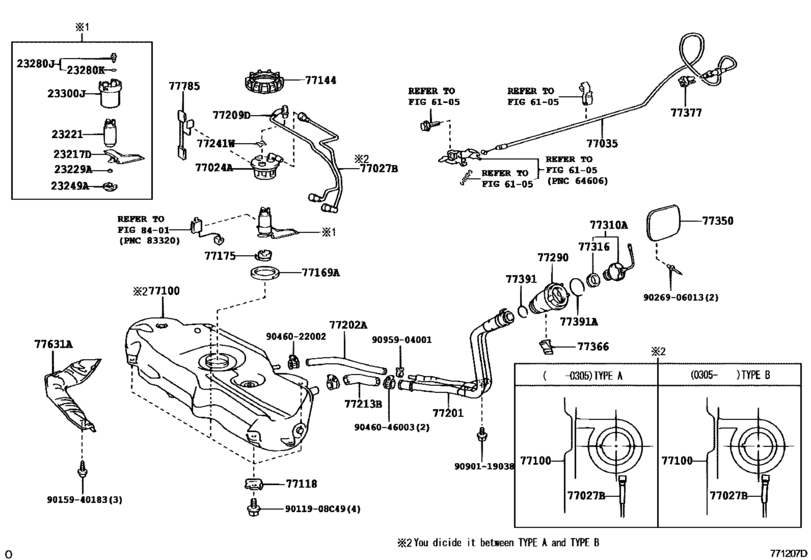

| 23217-21030 |
Filter, Fuel Pump |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 23219-03010 |
Clip(For Fuel Pump Filter) |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 23221-02090 |
Pump, Fuel |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 23229-16010 |
Clip(For Fuel Pump Filter) |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 23249-46180 |
Rubber, Cushion(For Fuel Pump) |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 23280-22010 |
Regulator Assy, Fuel Pressure |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 23300-0D060 |
Filter Assy, Fuel |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 23300-21010 |
Filter Assy, Fuel |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77001-0D022 |
Tank Assy, Fuel |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77001-0D023 |
Tank Assy, Fuel |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77024-0D010 |
Plate Sub-Assy, Fuel Suction |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77027-0D021 |
Tube Sub-Assy, Fuel Emission, No.1 |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77035-0D030 |
Cable Sub-Assy, Fuel Lid Lock Control |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77118-52010 |
Plate, Fuel Pump Connector |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77144-0D020 |
Retainer, Fuel Pump Gauge |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77169-0D010 |
Gasket, Fuel Suction Tube Set |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77175-0D010 |
Support, Fuel Suction, No.2 |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77201-0D030 |
Pipe Sub-Assy, Fuel Tank Inlet |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77209-0D020 |
Tube Sub-Assy, Fuel Tank Main |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77213-0D011 |
Hose, Fuel Tank To Filler Pipe |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77241-33011 |
Clip, Tube Joint |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77259-0D031 |
Hose, Fuel, No.1 (For Breather Tube) |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77291-0D020 |
Shield Assy, Fuel Tank Filler Pipe |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77300-28010 |
Cap Assy, Fuel Tank |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77316-16010 |
Gasket (For Fuel Tank Cap) |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77350-0D011 |
Lid Assy, Fuel Filler Opening |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77360-35010 |
Spring, Fuel Filler Opening Lid Hinge |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77377-12050 |
Bracket, Fuel Lid Lock Control |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77391-12020 |
Ring, Fuel Inlet Box |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77391-63010 |
Ring, Fuel Inlet Box |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77631-0D020 |
Protector, Fuel Tank, Lower Center |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 77785-0D010 |
Harness, Fuel Pump |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 90119-08C49 |
New Genuine Part |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 90159-40183 |
SCREWWWASHER |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 90269-06013 |
RIVET |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 90301-07020 |
Ring, O(For Fuel Pressure Regulator) |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 90460-22001 |
CLAMP |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 90460-22002 |
CLAMP |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 90460-46003 |
Clamp (For Fuel Filler Pipe) |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 90460-46005 |
Clamp (For Fuel Filler Pipe) |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 90901-19038 |
New Genuine Part |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
| 90959-04001 |
Clip, Fuel Hose |
Fuel Tank & Tube ([10.2002 - ] FUEL TANK (0210- )AXP4#,SCP4#) |
