Search › Model › SCP41

SCP41

Toyota VIOS · 2006 · 2,598 parts · 164 categories

2,598 items

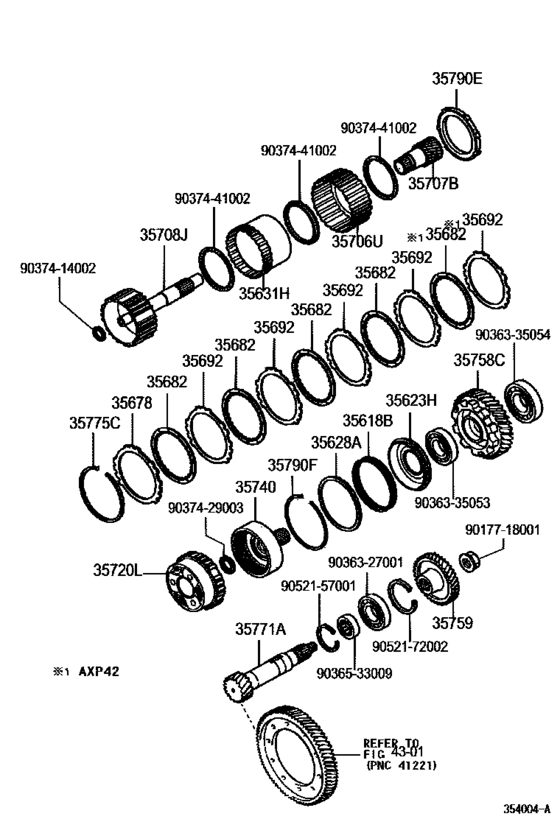

Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM) 49

#	OEM	Part name
35618	35618-52011	Spring, 1St & Revs Brake Piston Return
35623	35623-52040	Piston, 1St & Reverse Brake
35623	35623-B1020	Piston,1St & Reverse Brake
35624	35601-52040	Piston, 2Nd Brake
35624	90301-99137	Ring, O (For 2Nd Brake Piston)
35624	90301-99138	Ring, O (For 2Nd Brake Piston)
35627	35627-52020	Seat, Brake Return Spring
35628	35628-52020	Seat, 1St & Revs Brake Piston Return Spring
35631	35631-52030	Hub, Forward Clutch
35632	35632-52010	Plate, Brake
35637	35637-52010	Spring, 2Nd & 4Th Brake Piston Return
35664	35664-52031	Cylinder, 2Nd & 4Th Brake
35676	35676-52070	Flange, Brake, No.1
35676	90521-99125	Ring, Hole Snap (For Brake Flange)
35676	90521-99126	Ring, Hole Snap (For Brake Flange)
35676	90521-99127	Ring, Hole Snap (For Brake Flange)
35676	90521-99128	Ring, Hole Snap (For Brake Flange)
35676	90521-99129	Ring, Hole Snap (For Brake Flange)
35678	35678-52061	Flange, Brake(For 2Nd Brake)
35678	35678-52071	Flange, Brake(For 2Nd Brake)
35678	35678-52081	Flange, Brake(For 2Nd Brake)
35678	35678-52091	Flange, Brake(For 2Nd Brake)
35678	35678-52101	Flange, Brake(For 2Nd Brake)
35678	35678-52111	Flange, Brake(For 2Nd Brake)
35681	35681-52010	Disc, Brake, No.1
35682	35682-52031	Disc, Brake(For 2Nd Brake)
35682	35883-B1030	Disc, Brake
35692	35692-52031	Plate, Brake(For 2Nd Brake)
35706	35706-52020	Gear Sub-Assy, Planetary Sun
35707	35707-52020	Gear Sub-Assy, Rear Planetary Sun
35708	35708-52040	Shaft Sub-Assy, Intermediate
35720	35720-52050	Gear Assy, Planetary
35740	35740-52010	Gear Assy, Front Planetary Ring
35758	35758-52010	Gear, Reduction Drive
35759	35759-52010	Gear, Reduction Driven
35771	35771-52020	Shaft, Output
35775	90521-99123	Ring, Hole Snap (For Primary Reduction Drive)
35790	35790-52030	Clutch Assy, 1 Way
35790	90521-99124	Ring, Hole Snap(For 1Way Clutch)
9017718001	90177-18001	New Genuine Part
9036327001	90363-27001	New Genuine Part
9036335053	90363-35053	New Genuine Part
9036335054	90363-35054	New Genuine Part
9036533009	90365-33009	New Genuine Part
9037414002	90374-14002	New Genuine Part
9037429003	90374-29003	Bearing, Thrust Needle Roller (For Front Clutch Disc)
9037441002	90374-41002	New Genuine Part
9052157001	90521-57001	New Genuine Part
9052172002	90521-72002	New Genuine Part

OEM	Part name	Category
35601-52040	Piston, 2Nd Brake	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35618-52011	Spring, 1St & Revs Brake Piston Return	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35623-52040	Piston, 1St & Reverse Brake	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35623-B1020	Piston,1St & Reverse Brake	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35627-52020	Seat, Brake Return Spring	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35628-52020	Seat, 1St & Revs Brake Piston Return Spring	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35631-52030	Hub, Forward Clutch	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35632-52010	Plate, Brake	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35637-52010	Spring, 2Nd & 4Th Brake Piston Return	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35664-52031	Cylinder, 2Nd & 4Th Brake	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35676-52070	Flange, Brake, No.1	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35678-52061	Flange, Brake(For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35678-52071	Flange, Brake(For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35678-52081	Flange, Brake(For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35678-52091	Flange, Brake(For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35678-52101	Flange, Brake(For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35678-52111	Flange, Brake(For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35681-52010	Disc, Brake, No.1	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35682-52031	Disc, Brake(For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35692-52031	Plate, Brake(For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35706-52020	Gear Sub-Assy, Planetary Sun	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35707-52020	Gear Sub-Assy, Rear Planetary Sun	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35708-52040	Shaft Sub-Assy, Intermediate	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35720-52050	Gear Assy, Planetary	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35740-52010	Gear Assy, Front Planetary Ring	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35758-52010	Gear, Reduction Drive	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35759-52010	Gear, Reduction Driven	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35771-52020	Shaft, Output	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35790-52030	Clutch Assy, 1 Way	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
35883-B1030	Disc, Brake	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90177-18001	New Genuine Part	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90301-99137	Ring, O (For 2Nd Brake Piston)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90301-99138	Ring, O (For 2Nd Brake Piston)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90363-27001	New Genuine Part	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90363-35053	New Genuine Part	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90363-35054	New Genuine Part	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90365-33009	New Genuine Part	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90374-14002	New Genuine Part	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90374-29003	Bearing, Thrust Needle Roller (For Front Clutch Disc)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90374-41002	New Genuine Part	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90521-57001	New Genuine Part	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90521-72002	New Genuine Part	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90521-99123	Ring, Hole Snap (For Primary Reduction Drive)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90521-99124	Ring, Hole Snap(For 1Way Clutch)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90521-99125	Ring, Hole Snap (For Brake Flange)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90521-99126	Ring, Hole Snap (For Brake Flange)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90521-99127	Ring, Hole Snap (For Brake Flange)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90521-99128	Ring, Hole Snap (For Brake Flange)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
90521-99129	Ring, Hole Snap (For Brake Flange)	Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM)
