SCP13

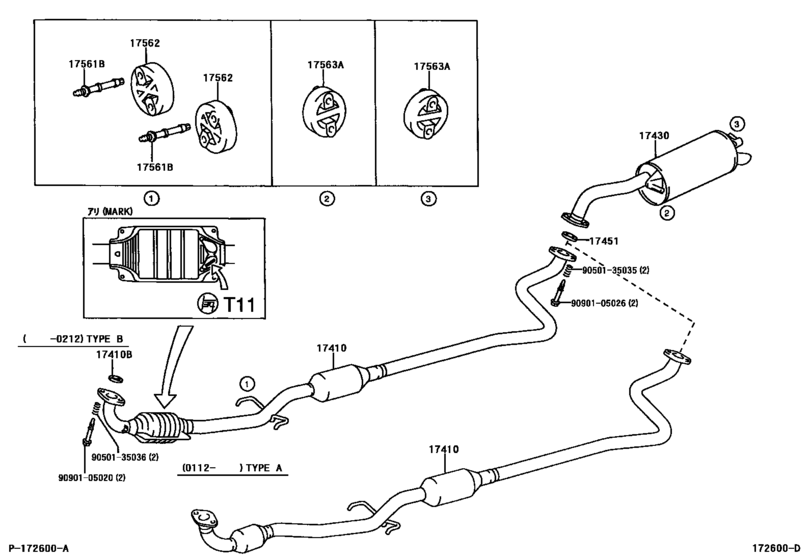

Exhaust Pipe ([01.1999 - ] (9901- )1SZFE,2SZFE) 11
| # | OEM | Part name |
|---|---|---|
| 17410 | 17410-23120 | Pipe Assy, Exhaust, Front |
| 17410 | 17451-22020 | Gasket, Exhaust Pipe |
| 17430 | 17430-23070 | Pipe Assy, Exhaust, Tail |
| 17451 | 17451-23010 | Gasket, Exhaust Pipe, Center |
| 17561 | 17584-23020 | Support, Exhaust Pipe, No.1 |
| 17562 | 17562-23040 | Support, Exhaust Pipe, No.2 |
| 17563 | 17565-46040 | Support, Exhaust Pipe, No.1 |
| 9050135035 | 90501-35035 | Spring, Exhaust Pipe |
| 9050135036 | 90501-35036 | SPRING COMPRESSION |
| 9090105020 | 90901-05020 | Bolt Or Ring, Exhaust Pipe Front (For Front) |
| 9090105026 | 90901-05026 | Bolt, Exhaust Pipe Support |
| OEM | Part name | Category |
|---|---|---|
| 17410-23120 | Pipe Assy, Exhaust, Front | Exhaust Pipe ([01.1999 - ] (9901- )1SZFE,2SZFE) |
| 17430-23070 | Pipe Assy, Exhaust, Tail | Exhaust Pipe ([01.1999 - ] (9901- )1SZFE,2SZFE) |
| 17451-22020 | Gasket, Exhaust Pipe | Exhaust Pipe ([01.1999 - ] (9901- )1SZFE,2SZFE) |
| 17451-23010 | Gasket, Exhaust Pipe, Center | Exhaust Pipe ([01.1999 - ] (9901- )1SZFE,2SZFE) |
| 17562-23040 | Support, Exhaust Pipe, No.2 | Exhaust Pipe ([01.1999 - ] (9901- )1SZFE,2SZFE) |
| 17565-46040 | Support, Exhaust Pipe, No.1 | Exhaust Pipe ([01.1999 - ] (9901- )1SZFE,2SZFE) |
| 17584-23020 | Support, Exhaust Pipe, No.1 | Exhaust Pipe ([01.1999 - ] (9901- )1SZFE,2SZFE) |
| 90501-35035 | Spring, Exhaust Pipe | Exhaust Pipe ([01.1999 - ] (9901- )1SZFE,2SZFE) |
| 90501-35036 | SPRING COMPRESSION | Exhaust Pipe ([01.1999 - ] (9901- )1SZFE,2SZFE) |
| 90901-05020 | Bolt Or Ring, Exhaust Pipe Front (For Front) | Exhaust Pipe ([01.1999 - ] (9901- )1SZFE,2SZFE) |
| 90901-05026 | Bolt, Exhaust Pipe Support | Exhaust Pipe ([01.1999 - ] (9901- )1SZFE,2SZFE) |
