SCP13

Toyota VITZ · 2002 · 3,033 parts · 170 categories

3,033 items

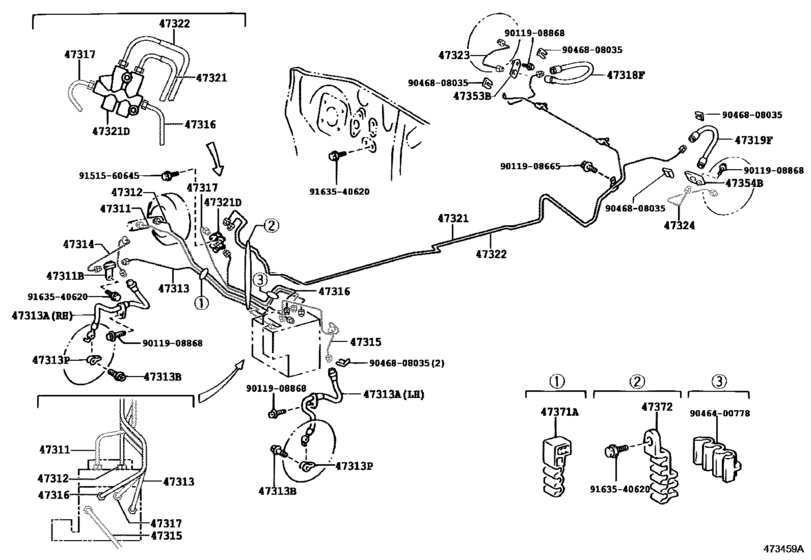

Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U) 39

#	OEM	Part name
47311	47311-52011	Tube, Front Brake, No.1
47311	47311-52180	Tube, Front Brake, No.1
47311	90412-10235	Way, No.1(For Front Brake Tube)
47312	47312-52011	Tube, Front Brake, No.2
47312	47312-52160	Tube, Front Brake, No.2
47313	47313-52011	Tube, Front Brake, No.3
47313	47313-52090	Tube, Front Brake, No.3
47313	90947-02C31	Hose, Flexible, No.1(For Front)
47313	90947-02D76	Hose, Flexible, No.1(For Front)
47313	90947-02C32	Hose, Flexible, No.1(For Front)
47313	90947-02D77	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-52011	Tube, Front Brake, No.4
47315	47315-52011	Tube, Front Brake, No.5
47315	47315-52100	Tube, Front Brake, No.5
47316	47316-52011	Tube, Front Brake, No.6
47316	47316-52080	Tube, Front Brake, No.6
47317	47317-52011	Tube, Front Brake, No.7
47317	47317-52080	Tube, Front Brake, No.7
47318	90947-02C30	Hose, Clutch
47321	47321-52012	Tube, Rear Brake, No.1
47321	47321-52210	Tube, Rear Brake, No.1
47321	90904-12088	Way, No.1(For Rear Brake Tube)
47322	47322-52012	Tube, Rear Brake, No.2
47322	47322-52190	Tube, Rear Brake, No.2
47323	47323-52080	Tube, Rear Brake, No.3
47324	47324-52070	Tube, Rear Brake, No.4
47353	47353-52010	Bracket, Flexible Hose, No.3
47354	47354-52010	Bracket, Flexible Hose, No.4
47371	47371-52010	Clamp, Brake Tube, No.1
47372	47372-52010	Clamp, Brake Tube, No.2
9011908665	90119-08665	BOLT
9011908868	90119-08868	BOLT WWASHER
9046400778	90464-00778	Clamp, Brake Tube, No.1
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9151560645	91515-60645	New Genuine Part
9163540620	91635-40620	New Genuine Part

OEM	Part name	Category
47311-52011	Tube, Front Brake, No.1	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47311-52180	Tube, Front Brake, No.1	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47312-52011	Tube, Front Brake, No.2	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47312-52160	Tube, Front Brake, No.2	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47313-52011	Tube, Front Brake, No.3	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47313-52090	Tube, Front Brake, No.3	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47314-52011	Tube, Front Brake, No.4	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47315-52011	Tube, Front Brake, No.5	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47315-52100	Tube, Front Brake, No.5	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47316-52011	Tube, Front Brake, No.6	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47316-52080	Tube, Front Brake, No.6	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47317-52011	Tube, Front Brake, No.7	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47317-52080	Tube, Front Brake, No.7	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47321-52012	Tube, Rear Brake, No.1	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47321-52210	Tube, Rear Brake, No.1	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47322-52012	Tube, Rear Brake, No.2	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47322-52190	Tube, Rear Brake, No.2	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47323-52080	Tube, Rear Brake, No.3	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47324-52070	Tube, Rear Brake, No.4	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47353-52010	Bracket, Flexible Hose, No.3	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47354-52010	Bracket, Flexible Hose, No.4	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47371-52010	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47372-52010	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
90119-08665	BOLT	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
90412-10235	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
90464-00778	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
90468-08035	CLIP	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
90904-12088	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
90947-02C30	Hose, Clutch	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
90947-02C31	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
90947-02C32	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
90947-02D76	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
90947-02D77	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
91515-60645	New Genuine Part	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
91635-40620	New Genuine Part	Brake Tube & Clamp ([12.2002 - ] ｴｺﾗﾝ (0212- )SCP13..U)
