Search › Model › SCP12

SCP12

Toyota YARIS-ECHO-VIOS-LIMO · 2002 · 3,034 parts · 169 categories

3,034 items

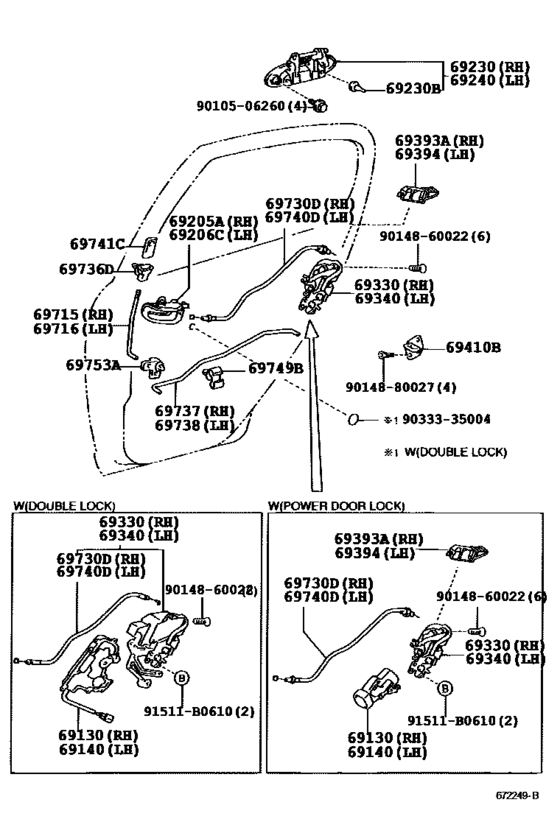

Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D) 44

#	OEM	Part name
69130	69130-0D010	Actuator Assy, Rear Door Lock, Rh
69130	69130-0D011	Actuator Assy, Rear Door Lock, Rh
69130	69130-52060	Actuator Assy, Rear Door Lock, Rh
69140	69140-0D010	Actuator Assy, Rear Door Lock, Lh
69140	69140-0D011	Actuator Assy, Rear Door Lock, Lh
69140	69140-52060	Actuator Assy, Rear Door Lock, Lh
69205	69205-0D030-B2	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-0D060-B1	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-0D030-B2	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-0D060-B1	Handle Sub-Assy, Front Door Inside, Lh
69230	69230-0D010	Handle Assy, Rear Door Outside, Rh
69230	69230-0D900	Handle Assy, Rear Door Outside, Rh
69230	90080-54028	Cushion(For Front Door Outside Handle)
69240	69240-0D010	Handle Assy, Rear Door Outside, Lh
69240	69240-0D900	Handle Assy, Rear Door Outside, Lh
69330	69330-0D010	Lock Assy, Rear Door, Rh
69330	69330-0D011	Lock Assy, Rear Door, Rh
69330	69330-0D020	Lock Assy, Rear Door, Rh
69330	69330-0D021	Lock Assy, Rear Door, Rh
69330	69330-52100	Lock Assy, Rear Door, Rh
69340	69340-0D010	Lock Assy, Rear Door, Lh
69340	69340-0D011	Lock Assy, Rear Door, Lh
69340	69340-0D020	Lock Assy, Rear Door, Lh
69340	69340-0D021	Lock Assy, Rear Door, Lh
69340	69340-52100	Lock Assy, Rear Door, Lh
69393	69393-0D010	Cover, Rear Door Lock, Outer Rh
69394	69394-0D010	Cover, Rear Door Lock, Outer Lh
69410	69410-0D010	Plate Assy, Front Door Lock Striker
69715	69715-0D010	Link, Rear Door Locking Control, No.2 Rh
69716	69716-0D010	Link, Rear Door Locking Control, No.2 Lh
69730	69730-0D010	Cable Assy, Rear Door Lock Remote Control, Rh
69730	69730-52010	Cable Assy, Rear Door Lock Remote Control, Rh
69736	69736-12130	Guide, Front Door Locking Link
69737	69737-0D010	Link, Rear Door Inside Locking, Rh
69738	69738-0D010	Link, Rear Door Inside Locking, Lh
69741	69741-87003-B8	Knob, Front Door Lock Control (Dark Gray)
69749	69749-32040	Clamp, Front Door Lock Link
69753	69753-10010	Bellcrank, Door Lock Control
91511	91511-B0610	BOLT FLANGE
9010506260	90105-06260	BOLT, WASHER BASED
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014880027	90148-80027	Screw Hex Lobular
9033335004	90333-35004	Plate, Noise Control, No.1

OEM	Part name	Category
69130-0D010	Actuator Assy, Rear Door Lock, Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69130-0D011	Actuator Assy, Rear Door Lock, Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69130-52060	Actuator Assy, Rear Door Lock, Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69140-0D010	Actuator Assy, Rear Door Lock, Lh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69140-0D011	Actuator Assy, Rear Door Lock, Lh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69140-52060	Actuator Assy, Rear Door Lock, Lh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69205-0D030-B2	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69205-0D060-B1	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69206-0D030-B2	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69206-0D060-B1	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69230-0D010	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69230-0D900	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69240-0D010	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69240-0D900	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69330-0D010	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69330-0D011	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69330-0D020	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69330-0D021	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69330-52100	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69340-0D010	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69340-0D011	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69340-0D020	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69340-0D021	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69340-52100	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69393-0D010	Cover, Rear Door Lock, Outer Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69394-0D010	Cover, Rear Door Lock, Outer Lh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69410-0D010	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69715-0D010	Link, Rear Door Locking Control, No.2 Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69716-0D010	Link, Rear Door Locking Control, No.2 Lh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69730-0D010	Cable Assy, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69730-52010	Cable Assy, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69736-12130	Guide, Front Door Locking Link	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69737-0D010	Link, Rear Door Inside Locking, Rh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69738-0D010	Link, Rear Door Inside Locking, Lh	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69741-87003-B8	Knob, Front Door Lock Control (Dark Gray)	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69749-32040	Clamp, Front Door Lock Link	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
69753-10010	Bellcrank, Door Lock Control	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
90080-54028	Cushion(For Front Door Outside Handle)	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
90105-06260	BOLT, WASHER BASED	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
90148-60022	BOLT	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
90148-80027	Screw Hex Lobular	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
90148-A0005	Hexalobular Screw	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
90333-35004	Plate, Noise Control, No.1	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
91511-B0610	BOLT FLANGE	Rear Door Lock & Handle ([01.2001 - ] (0101- )FRP..5D)
