SCP12

Toyota YARIS-ECHO-VIOS-LIMO · 2002 · 3,034 parts · 169 categories

← Back to categories

3,034 items

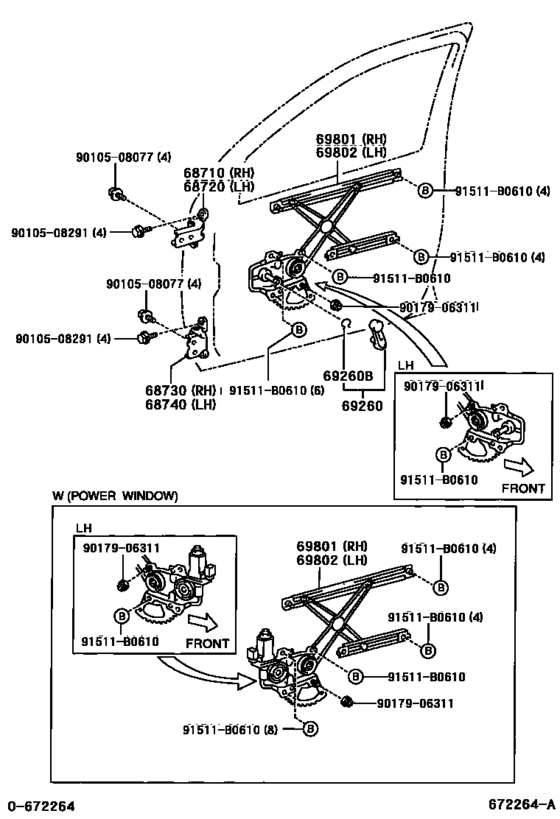

Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP) 18

#	OEM	Part name
68710	68710-0D010	Hinge Assy, Front Door, Upper Rh
68710	68710-52010	Hinge Assy, Front Door, Upper Rh
68720	68720-0D010	Hinge Assy, Front Door, Upper Lh
68730	68730-0D010	Hinge Assy, Front Door, Lower Rh
68730	68730-52010	Hinge Assy, Front Door, Lower Rh
68740	68740-0D010	Hinge Assy, Front Door, Lower Lh
68740	68740-52010	Hinge Assy, Front Door, Lower Lh
69260	69260-0D010-B3	Handle Assy, Front Door Window Regulator
69260	69260-0D010-B4	Handle Assy, Front Door Window Regulator
69260	90524-15005	Ring, Shaft Snap(For Front Door Window Regulator Handle) - SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
69801	69810-0D010	Regulator Sub-Assy, Front Door Window, Rh
69801	69810-0D020	Regulator Sub-Assy, Front Door Window, Rh
69802	69820-0D010	Regulator Sub-Assy, Front Door Window, Lh
69802	69820-0D020	Regulator Sub-Assy, Front Door Window, Lh
91511	91511-B0610	BOLT FLANGE
9010508077	90105-08077	BOLT
9010508291	90105-08291	BOLT
9017906311	90179-06311	New Genuine Part

OEM	Part name	Category
68710-0D010	Hinge Assy, Front Door, Upper Rh	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
68710-52010	Hinge Assy, Front Door, Upper Rh	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
68720-0D010	Hinge Assy, Front Door, Upper Lh	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
68730-0D010	Hinge Assy, Front Door, Lower Rh	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
68730-52010	Hinge Assy, Front Door, Lower Rh	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
68740-0D010	Hinge Assy, Front Door, Lower Lh	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
68740-52010	Hinge Assy, Front Door, Lower Lh	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
69260-0D010-B3	Handle Assy, Front Door Window Regulator	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
69260-0D010-B4	Handle Assy, Front Door Window Regulator	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
69810-0D010	Regulator Sub-Assy, Front Door Window, Rh	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
69810-0D020	Regulator Sub-Assy, Front Door Window, Rh	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
69820-0D010	Regulator Sub-Assy, Front Door Window, Lh	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
69820-0D020	Regulator Sub-Assy, Front Door Window, Lh	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
90105-08077	BOLT	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
90105-08291	BOLT	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
90179-06311	New Genuine Part	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
90524-15005	Ring, Shaft Snap(For Front Door Window Regulator Handle) - SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
91511-B0610	BOLT FLANGE	Front Door Window Regulator & Hinge ([01.2001 - ] (0101- )FRP)
