Search › Model › SCP12
SCP12

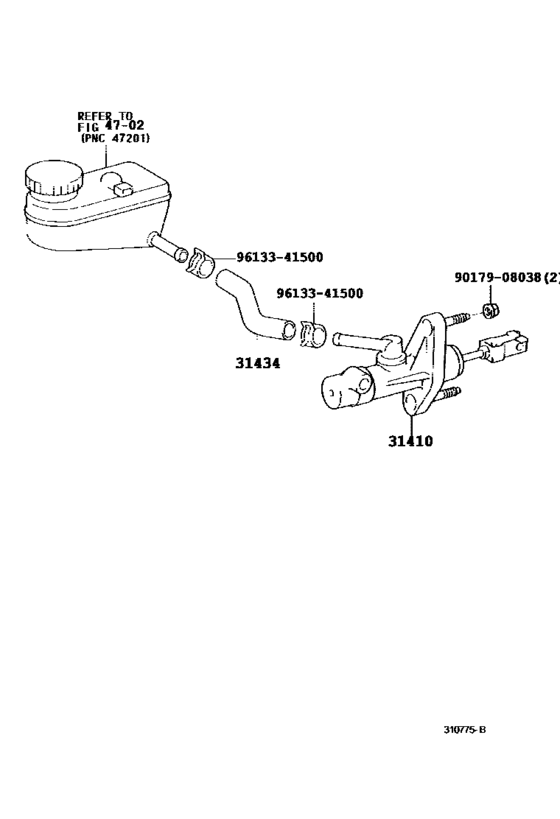

Clutch Master Cylinder ([01.2001 - ] (0101- )FRP..5F) 5
| # | OEM | Part name |
|---|---|---|
| 31410 | 31420-0D060 | Cylinder Assy, Clutch Master |
| 31410 | 31420-0D061 | Cylinder Assy, Clutch Master |
| 31434 | 31434-52050 | Tube, Clutch Reservoir |
| 9017908038 | 90179-08038 | Nut |
| 9613341500 | 96133-41500 | Clamp Or Clip(For Air Hose, No.5) |
| OEM | Part name | Category |
|---|---|---|
| 31420-0D060 | Cylinder Assy, Clutch Master | Clutch Master Cylinder ([01.2001 - ] (0101- )FRP..5F) |
| 31420-0D061 | Cylinder Assy, Clutch Master | Clutch Master Cylinder ([01.2001 - ] (0101- )FRP..5F) |
| 31434-52050 | Tube, Clutch Reservoir | Clutch Master Cylinder ([01.2001 - ] (0101- )FRP..5F) |
| 90179-08038 | Nut | Clutch Master Cylinder ([01.2001 - ] (0101- )FRP..5F) |
| 96133-41500 | Clamp Or Clip(For Air Hose, No.5) | Clutch Master Cylinder ([01.2001 - ] (0101- )FRP..5F) |
