SCP11

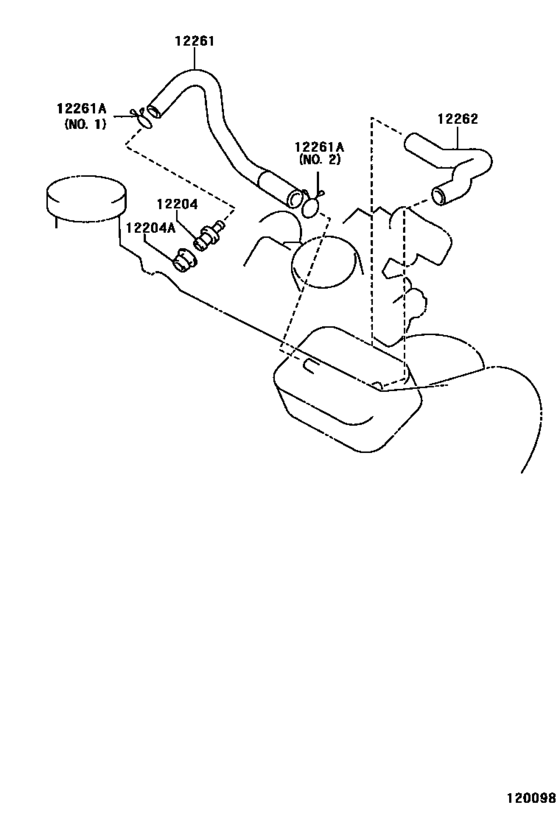

Ventilation Hose ([08.1999 - ] (9908- )1SZFE) 9
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-23010 | Valve Sub-Assy, Ventilation |
| 12204 | 12204-23011 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-18001 | Grommet(For Ventilation System) |
| 12261 | 12261-23010 | Hose, Ventilation |
| 12261 | 90467-14001 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90466-T0026 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90467-18003 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 90910-05224 | Hose, Ventilation, No.2 |
| 12262 | 90910-05227 | Hose, Ventilation, No.2 |
| OEM | Part name | Category |
|---|---|---|
| 12204-23010 | Valve Sub-Assy, Ventilation | Ventilation Hose ([08.1999 - ] (9908- )1SZFE) |
| 12204-23011 | Valve Sub-Assy, Ventilation | Ventilation Hose ([08.1999 - ] (9908- )1SZFE) |
| 12261-23010 | Hose, Ventilation | Ventilation Hose ([08.1999 - ] (9908- )1SZFE) |
| 90466-T0026 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.1999 - ] (9908- )1SZFE) |
| 90467-14001 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.1999 - ] (9908- )1SZFE) |
| 90467-18003 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.1999 - ] (9908- )1SZFE) |
| 90480-18001 | Grommet(For Ventilation System) | Ventilation Hose ([08.1999 - ] (9908- )1SZFE) |
| 90910-05224 | Hose, Ventilation, No.2 | Ventilation Hose ([08.1999 - ] (9908- )1SZFE) |
| 90910-05227 | Hose, Ventilation, No.2 | Ventilation Hose ([08.1999 - ] (9908- )1SZFE) |
