SCP11

Toyota PLATZ · 1999 · 4,584 parts · 229 categories
SCP11 ×

← Back to categories

4,584 items

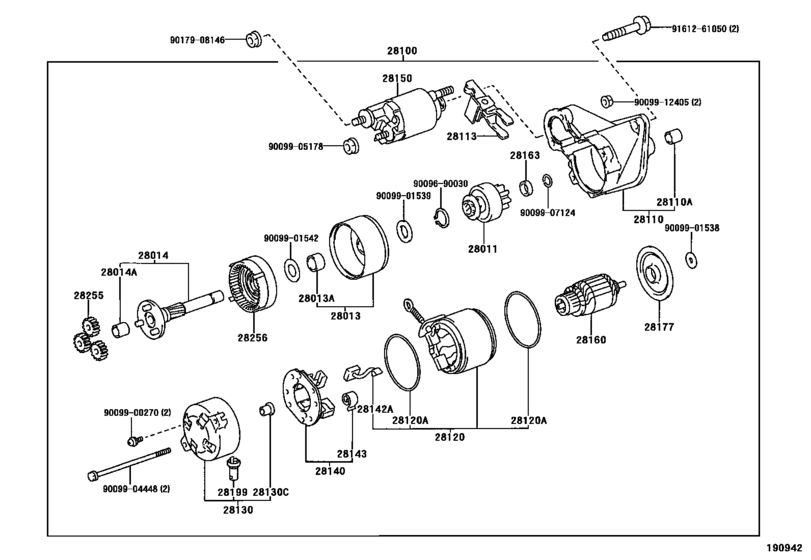

Starter ([08.1999 - 08.2002] 12V 1.0KW (9908-0208)1SZFE) 48
#OEMPart name
28011 28011-23020 Clutch Sub-Assy, Starter
28011 28011-23030 Clutch Sub-Assy, Starter
28013 28013-70020 Bearing, Starter Center & Shock Absorber, No.1
28013 28013-70030 Bearing, Starter Center & Shock Absorber, No.1
28013 90099-10181 Bearing, Starter Center & Shock Absorber, No.2
28014 28014-70020 Shaft Sub-Assy, Planet Carrier
28014 90099-10180 Bush Or Bearing, Planet Carrier Shaft
28100 28100-23020 Starter Assy
28100 28100-23031 Starter Assy
28100 28100-23030 Starter Assy
28110 28110-23020 Housing Assy, Starter Drive
28110 28110-23030 Housing Assy, Starter Drive
28110 90099-10171 Bearing(For Starter Housing)
28113 28113-10020 Lever, Starter Pinion Drive
28113 28113-16070 Lever, Starter Pinion Drive
28120 28120-10020 Yoke Assy, Starter
28120 28120-70050 Yoke Assy, Starter
28120 90099-14092 Ring, O(For Starter Yoke)
28130 28130-16070 Frame Assy, Starter Commutator End
28130 28130-23020 Frame Assy, Starter Commutator End
28130 90099-10157 Bearing, Starter Flange
28130 90099-10183 Bearing, Starter Flange
28140 28140-70020 Holder Assy, Starter Brush
28142 28142-10020 Brush, Starter
28142 28142-70020 Brush, Starter
28143 28143-10020 Spring, Starter Brush
28143 28143-70020 Spring, Starter Brush
28150 28150-16160 Switch Assy, Magnet Starter
28160 28160-10020 Armature Assy, Starter
28160 28160-70050 Armature Assy, Starter
28163 28163-10021 Nut Or Collar, Pinion Stop, Starter
28163 28163-70020 Nut Or Collar, Pinion Stop, Starter
28177 28177-70020 Plate(For Starter Armature)
28199 28199-46080 Cover, Starter End Frame
28255 28255-70020 Gear, Planet
28256 28256-70020 Gear, Starter Internal
9009690030 90096-90030 Ring, Snap, Starter Clutch Housing Disc
9009900270 90099-00270 Screw, Starter
9009901538 90099-01538 New Genuine Part
9009901539 90099-01539 New Genuine Part
9009901542 90099-01542 New Genuine Part
9009904448 90099-04448 Bolt, Starter
9009905178 90099-05178 New Genuine Part
9009907124 90099-07124 Bearing(For Starter Housing)
9009912405 90099-12405 New Genuine Part
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9161261050 91612-61050 Bolt(For Transaxle & Engine Setting)
