Search › Model › SCP11
SCP11

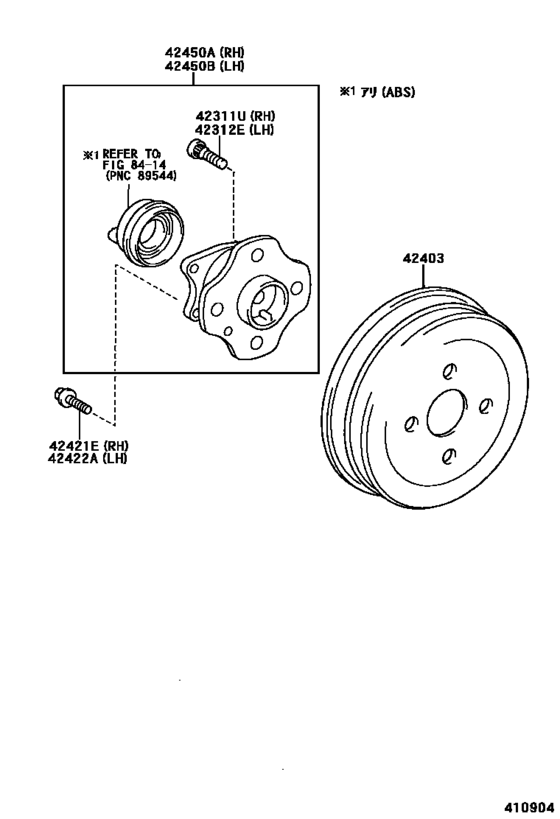

Rear Axle Shaft & Hub ([08.1999 - ] (9908- )NCP12,SCP11) 7
| # | OEM | Part name |
|---|---|---|
| 42311 | 90942-02047 | Bolt, Hub |
| 42403 | 42431-52010 | Drum Sub-Assy, Rear Brake |
| 42403 | 42431-52011 | Drum Sub-Assy, Rear Brake |
| 42421 | 90105-10470 | Bolt (For Rear Axle Bearing Case Rh) |
| 42421 | 90105-10507 | Bolt (For Rear Axle Bearing Case Rh) |
| 42450 | 42450-52020 | Hub & Bearing Assy, Rear Axle, Rh |
| 42450 | 42450-52021 | Hub & Bearing Assy, Rear Axle, Rh |
| OEM | Part name | Category |
|---|---|---|
| 42431-52010 | Drum Sub-Assy, Rear Brake | Rear Axle Shaft & Hub ([08.1999 - ] (9908- )NCP12,SCP11) |
| 42431-52011 | Drum Sub-Assy, Rear Brake | Rear Axle Shaft & Hub ([08.1999 - ] (9908- )NCP12,SCP11) |
| 42450-52020 | Hub & Bearing Assy, Rear Axle, Rh | Rear Axle Shaft & Hub ([08.1999 - ] (9908- )NCP12,SCP11) |
| 42450-52021 | Hub & Bearing Assy, Rear Axle, Rh | Rear Axle Shaft & Hub ([08.1999 - ] (9908- )NCP12,SCP11) |
| 90105-10470 | Bolt (For Rear Axle Bearing Case Rh) | Rear Axle Shaft & Hub ([08.1999 - ] (9908- )NCP12,SCP11) |
| 90105-10507 | Bolt (For Rear Axle Bearing Case Rh) | Rear Axle Shaft & Hub ([08.1999 - ] (9908- )NCP12,SCP11) |
| 90942-02047 | Bolt, Hub | Rear Axle Shaft & Hub ([08.1999 - ] (9908- )NCP12,SCP11) |
