Search › Model › SCP11

SCP11

Toyota PLATZ · 1999 · 4,584 parts · 229 categories

4,584 items

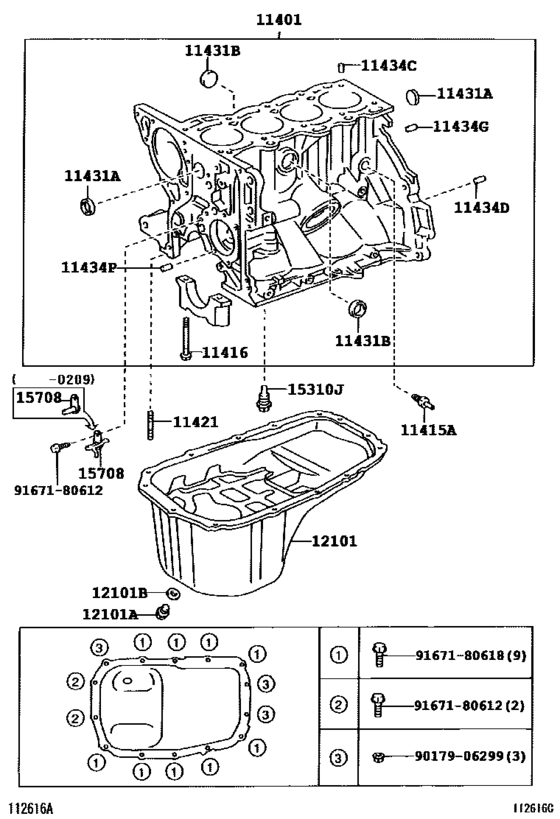

Cylinder Block ([08.1999 - ] (9908- )1SZFE) 27

#	OEM	Part name
11401	11401-23020	Block Sub-Assy, Cylinder
11401	11401-23031	Block Sub-assy, Cylinder
11401	11701-23061-02	Bearing, Crankshaft
11401	11701-23061-03	Bearing, Crankshaft
11401	11701-23061-04	Bearing, Crankshaft
11401	11701-23061-05	Bearing, Crankshaft
11401	11401-23021	Block Sub-Assy, Cylinder
11401	11401-23030	Block Sub-Assy, Cylinder
11415	90910-09116	Plug, Water Drain Cock(For Cylinder Block)
11416	90105-10460	Bolt(For Crankshaft Bearing Cap Set)
11416	90105-10492	Bolt(For Crankshaft Bearing Cap Set)
11421	92122-60610	Bolt, Stud(For Oil Pan)
11431	96411-62500	Plug, Tight, No.1
11431	96411-63000	Plug, Tight
11434	90253-12002	Pin, Ring
11434	90250-06030	Pin, Straight(For Timing Chain Cover)
11434	90250-10214	Pin, Straight(For End Plate)
12101	12101-23030	Pan Sub-Assy, Oil
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90341-T0004	Plug(For Oil Pan Drain)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
15310	15310-23010	Regulator Assy, Oil
15708	15708-23010	Nozzle Sub-Assy, Oil, No.1
15708	15708-23020	Nozzle Sub-Assy, Oil, No.1
9017906299	90179-06299	Nut, Wire Adjusting, No.1
9167180612	91671-80612	Bolt
9167180618	91671-80618	BOLT FLANGE WWSHER

OEM	Part name	Category
11401-23020	Block Sub-Assy, Cylinder	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
11401-23021	Block Sub-Assy, Cylinder	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
11401-23030	Block Sub-Assy, Cylinder	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
11401-23031	Block Sub-assy, Cylinder	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
11701-23061-02	Bearing, Crankshaft	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
11701-23061-03	Bearing, Crankshaft	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
11701-23061-04	Bearing, Crankshaft	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
11701-23061-05	Bearing, Crankshaft	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
12101-23030	Pan Sub-Assy, Oil	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
15310-23010	Regulator Assy, Oil	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
15708-23010	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
15708-23020	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
90105-10460	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
90105-10492	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
90179-06299	Nut, Wire Adjusting, No.1	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
90250-06030	Pin, Straight(For Timing Chain Cover)	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
90250-10214	Pin, Straight(For End Plate)	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
90253-12002	Pin, Ring	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
90341-T0004	Plug(For Oil Pan Drain)	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
90910-09116	Plug, Water Drain Cock(For Cylinder Block)	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
91671-80612	Bolt	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
91671-80618	BOLT FLANGE WWSHER	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
92122-60610	Bolt, Stud(For Oil Pan)	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
96411-62500	Plug, Tight, No.1	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
96411-63000	Plug, Tight	Cylinder Block ([08.1999 - ] (9908- )1SZFE)
