Search › Model › SCP11

SCP11

Toyota PLATZ · 1999 · 4,584 parts · 229 categories

4,584 items

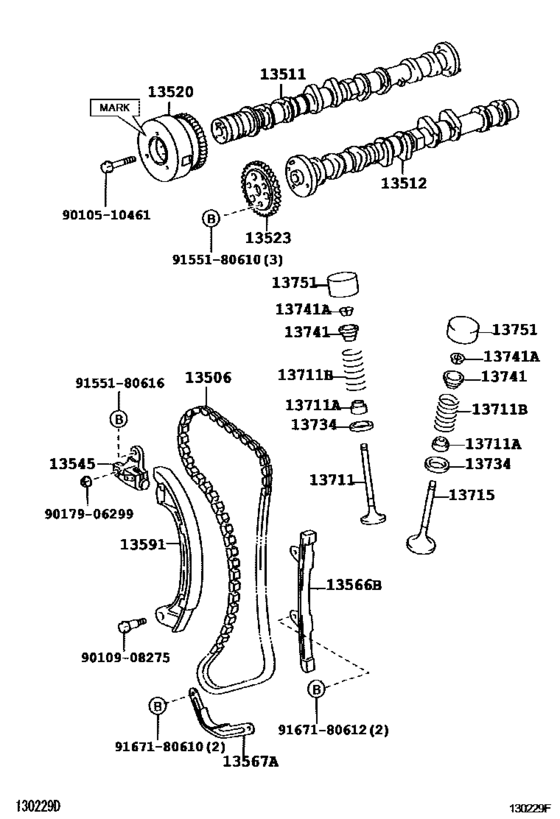

Camshaft & Valve ([08.1999 - ] (9908- )1SZFE) 59

#	OEM	Part name
13506	13506-23010	Chain Sub-Assy
13511	13501-23020	Camshaft
13512	13502-23010	Camshaft, No.2
13520	13520-23010	Sprocket Assy, Camshaft Timing
13520	13520-23020	Sprocket Assy, Camshaft Timing
13520	13520-23021	Sprocket Assy, Camshaft Timing
13523	13523-23050	Gear Or Sprocket, Camshaft Timing
13545	13545-23010	Plunger, Chain Tensioner
13566	13566-23010	Guide, Timing Chain
13566	13566-23011	Guide, Timing Chain
13567	13567-23010	Guide, Timing Chain, No.2
13567	13567-23020	Guide, Timing Chain, No.2
13591	13591-23010	Arm, Timing Chain Tension
13711	13711-23030	Valve, Intake
13711	90913-02120	Seal Or Ring, O(For Valve Stem Oil)
13711	90913-02125	Seal Or Ring, O(For Valve Stem Oil)
13711	90501-32046	Spring, Compression(For Inner)
13711	90501-34012	Spring, Compression(For Inner)
13711	90501-32047	Spring, Compression(For Inner)
13715	13715-23030	Valve, Exhaust
13734	13734-23010	Seat, Valve Spring
13741	13741-23030	Retainer, Valve Spring
13741	90913-03032	Lock, Valve Spring Retainer
13751	13751-23030	Lifter, Valve
13751	13751-23040	Lifter, Valve
13751	13751-23050	Lifter, Valve
13751	13751-23060	Lifter, Valve
13751	13751-23070	Lifter, Valve
13751	13751-23080	Lifter, Valve
13751	13751-23090	Lifter, Valve
13751	13751-23100	Lifter, Valve
13751	13751-23110	Lifter, Valve
13751	13751-23120	Lifter, Valve
13751	13751-23130	Lifter, Valve
13751	13751-23140	Lifter, Valve
13751	13751-23150	Lifter, Valve
13751	13751-23160	Lifter, Valve
13751	13751-23170	Lifter, Valve
13751	13751-23180	Lifter, Valve
13751	13751-23190	Lifter, Valve
13751	13751-23200	Lifter, Valve
13751	13751-23210	Lifter, Valve
13751	13751-23220	Lifter, Valve
13751	13751-23230	Lifter, Valve
13751	13751-23240	Lifter, Valve
13751	13751-23250	Lifter, Valve
13751	13751-23260	Lifter, Valve
13751	13751-23270	Lifter, Valve
13751	13751-23280	Lifter, Valve
13751	13751-23290	Lifter, Valve
13751	13751-23300	Lifter, Valve
13751	13751-23310	Lifter, Valve
9010510461	90105-10461	New Genuine Part
9010908275	90109-08275	New Genuine Part
9017906299	90179-06299	Nut, Wire Adjusting, No.1
9155180610	91551-80610	BOLT FLANGE
9155180616	91551-80616	BOLT FLANGE
9167180610	91671-80610	New Genuine Part
9167180612	91671-80612	Bolt

OEM	Part name	Category
13501-23020	Camshaft	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13502-23010	Camshaft, No.2	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13506-23010	Chain Sub-Assy	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13520-23010	Sprocket Assy, Camshaft Timing	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13520-23020	Sprocket Assy, Camshaft Timing	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13520-23021	Sprocket Assy, Camshaft Timing	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13523-23050	Gear Or Sprocket, Camshaft Timing	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13545-23010	Plunger, Chain Tensioner	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13566-23010	Guide, Timing Chain	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13566-23011	Guide, Timing Chain	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13567-23010	Guide, Timing Chain, No.2	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13567-23020	Guide, Timing Chain, No.2	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13591-23010	Arm, Timing Chain Tension	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13711-23030	Valve, Intake	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13715-23030	Valve, Exhaust	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13734-23010	Seat, Valve Spring	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13741-23030	Retainer, Valve Spring	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23030	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23040	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23050	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23060	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23070	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23080	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23090	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23100	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23110	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23120	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23130	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23140	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23150	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23160	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23170	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23180	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23190	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23200	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23210	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23220	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23230	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23240	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23250	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23260	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23270	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23280	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23290	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23300	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
13751-23310	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
90105-10461	New Genuine Part	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
90109-08275	New Genuine Part	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
90179-06299	Nut, Wire Adjusting, No.1	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
90501-32046	Spring, Compression(For Inner)	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
90501-32047	Spring, Compression(For Inner)	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
90501-34012	Spring, Compression(For Inner)	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
90913-02120	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
90913-02125	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
90913-03032	Lock, Valve Spring Retainer	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
91551-80610	BOLT FLANGE	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
91551-80616	BOLT FLANGE	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
91671-80610	New Genuine Part	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
91671-80612	Bolt	Camshaft & Valve ([08.1999 - ] (9908- )1SZFE)
