SCP100

Toyota RACTIS · 2005 · 3,555 parts · 350 categories

← Back to categories

3,555 items

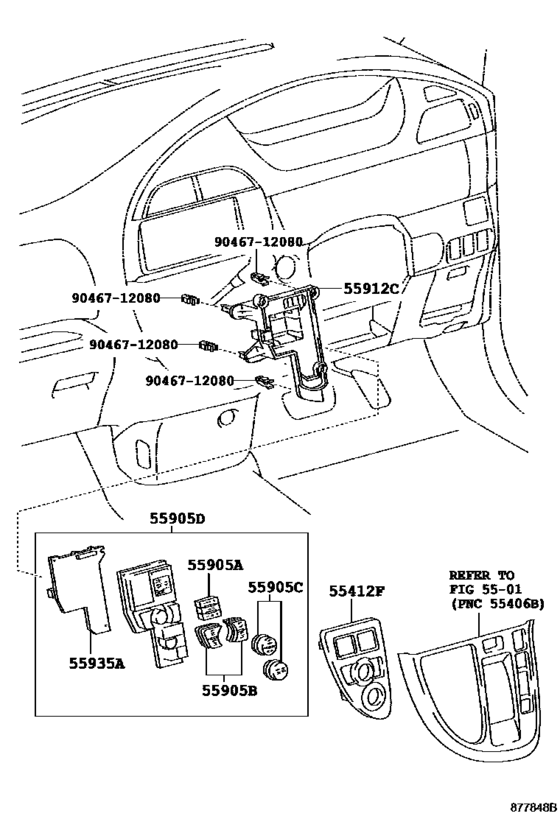

Heating & Air Conditioning - Control & Air Duct ([10.2009 - ] CONTROL PANEL---AUTO (0910- )) 9

#	OEM	Part name
55412	55410-52120	Panel, Instrument Cluster Finish, Center
55905	55905-52430	Knob, Heater Control
55905	55903-52130	Knob, Heater Control, No.2
55905	55905-52440	Knob, Heater Control, No.2
55905	55905-52450	Knob, Heater Control, No.3
55905	55905-52490	Knob Sub-Assy, Control
55912	55912-52100	Housing, Heater Control
55935	55935-52100	Circuit, Center Cluster Module
9046712080	90467-12080	Clip(For Panel, Instrument Cluster Finish)

OEM	Part name	Category
55410-52120	Panel, Instrument Cluster Finish, Center	Heating & Air Conditioning - Control & Air Duct ([10.2009 - ] CONTROL PANEL---AUTO (0910- ))
55903-52130	Knob, Heater Control, No.2	Heating & Air Conditioning - Control & Air Duct ([10.2009 - ] CONTROL PANEL---AUTO (0910- ))
55905-52430	Knob, Heater Control	Heating & Air Conditioning - Control & Air Duct ([10.2009 - ] CONTROL PANEL---AUTO (0910- ))
55905-52440	Knob, Heater Control, No.2	Heating & Air Conditioning - Control & Air Duct ([10.2009 - ] CONTROL PANEL---AUTO (0910- ))
55905-52450	Knob, Heater Control, No.3	Heating & Air Conditioning - Control & Air Duct ([10.2009 - ] CONTROL PANEL---AUTO (0910- ))
55905-52490	Knob Sub-Assy, Control	Heating & Air Conditioning - Control & Air Duct ([10.2009 - ] CONTROL PANEL---AUTO (0910- ))
55912-52100	Housing, Heater Control	Heating & Air Conditioning - Control & Air Duct ([10.2009 - ] CONTROL PANEL---AUTO (0910- ))
55935-52100	Circuit, Center Cluster Module	Heating & Air Conditioning - Control & Air Duct ([10.2009 - ] CONTROL PANEL---AUTO (0910- ))
90467-12080	Clip(For Panel, Instrument Cluster Finish)	Heating & Air Conditioning - Control & Air Duct ([10.2009 - ] CONTROL PANEL---AUTO (0910- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 350
Collected: 2026-08-04
