Search › Model › SC11
SC11

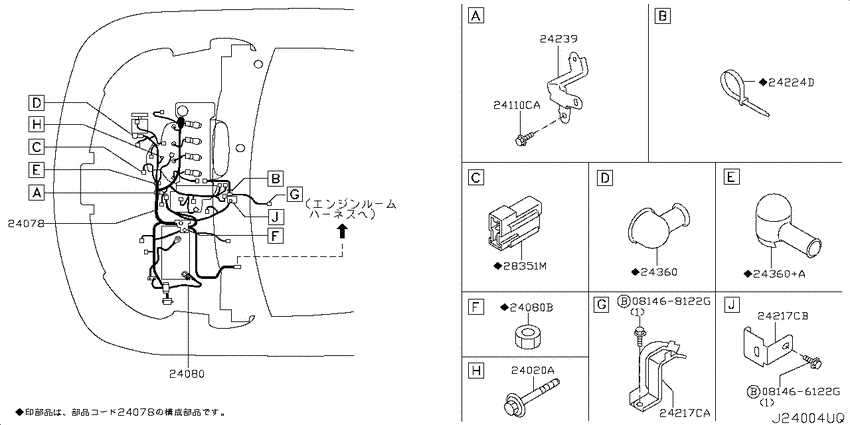

Wiring (2008-01-01 ~ ; EGI ﾊｰﾈｽ; S.MR18DE) 12
| # | OEM | Part name |
|---|---|---|
| 24078 | 24011-1JZ1A | Harness Assy-Egi |
| 24078 | 24011-1JZ1B | Harness Assy-Egi |
| 24080 | 24080-1JZ0A | Cable Assy-Battery Earth |
| 24110 | 01125-E8021 | Bolt |
| 24217 | 24239-EM05A | Bracket-Harness Clip |
| 24217 | 24239-ED40A | Bracket-Harness Clip |
| 24224 | 24216-S5800 | Clip-Harness |
| 24239 | 24239-EN03A | Bracket-Harness |
| 24360 | 24360-4F100 | Cap-Terminal |
| 24360 | 24360-ED023 | Cap-Terminal |
| 28351 | 28351-89902 | Condensor-Ignition Coil |
| 81468122 | 08146-8122G | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 01125-E8021 | Bolt | Wiring (2008-01-01 ~ ; EGI ﾊｰﾈｽ; S.MR18DE) |
| 08146-8122G | Bolt-hexagon | Wiring (2008-01-01 ~ ; EGI ﾊｰﾈｽ; S.MR18DE) |
| 24011-1JZ1A | Harness Assy-Egi | Wiring (2008-01-01 ~ ; EGI ﾊｰﾈｽ; S.MR18DE) |
| 24011-1JZ1B | Harness Assy-Egi | Wiring (2008-01-01 ~ ; EGI ﾊｰﾈｽ; S.MR18DE) |
| 24080-1JZ0A | Cable Assy-Battery Earth | Wiring (2008-01-01 ~ ; EGI ﾊｰﾈｽ; S.MR18DE) |
| 24216-S5800 | Clip-Harness | Wiring (2008-01-01 ~ ; EGI ﾊｰﾈｽ; S.MR18DE) |
| 24239-ED40A | Bracket-Harness Clip | Wiring (2008-01-01 ~ ; EGI ﾊｰﾈｽ; S.MR18DE) |
| 24239-EM05A | Bracket-Harness Clip | Wiring (2008-01-01 ~ ; EGI ﾊｰﾈｽ; S.MR18DE) |
| 24239-EN03A | Bracket-Harness | Wiring (2008-01-01 ~ ; EGI ﾊｰﾈｽ; S.MR18DE) |
| 24360-4F100 | Cap-Terminal | Wiring (2008-01-01 ~ ; EGI ﾊｰﾈｽ; S.MR18DE) |
| 24360-ED023 | Cap-Terminal | Wiring (2008-01-01 ~ ; EGI ﾊｰﾈｽ; S.MR18DE) |
| 28351-89902 | Condensor-Ignition Coil | Wiring (2008-01-01 ~ ; EGI ﾊｰﾈｽ; S.MR18DE) |
