Search › Model › SC11
SC11

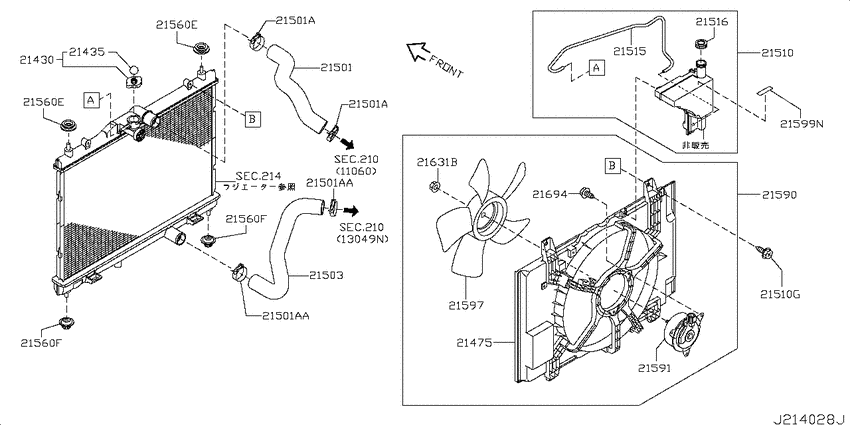

Radiator, shroud & fitting (2008-01-01 ~ ; フィッティングパーツ; MR18DE.MT) 6
| # | OEM | Part name |
|---|---|---|
| 21430 | 21430-7999C | Cap Assy-Radiator |
| 21435 | 21435-89960 | Label-Caution, Radiator |
| 21501 | 01558-00731 | CLAMP-HOSE |
| 21560 | 21506-AX300 | Mounting Rubber-Radiator, Upper |
| 21590 | 21481-ED800 | Motor & Fan Assy-With Shroud |
| 21694 | 21694-0M300 | Bolt-Special |
| OEM | Part name | Category |
|---|---|---|
| 01558-00731 | CLAMP-HOSE | Radiator, shroud & fitting (2008-01-01 ~ ; フィッティングパーツ; MR18DE.MT) |
| 21430-7999C | Cap Assy-Radiator | Radiator, shroud & fitting (2008-01-01 ~ ; フィッティングパーツ; MR18DE.MT) |
| 21435-89960 | Label-Caution, Radiator | Radiator, shroud & fitting (2008-01-01 ~ ; フィッティングパーツ; MR18DE.MT) |
| 21481-ED800 | Motor & Fan Assy-With Shroud | Radiator, shroud & fitting (2008-01-01 ~ ; フィッティングパーツ; MR18DE.MT) |
| 21506-AX300 | Mounting Rubber-Radiator, Upper | Radiator, shroud & fitting (2008-01-01 ~ ; フィッティングパーツ; MR18DE.MT) |
| 21694-0M300 | Bolt-Special | Radiator, shroud & fitting (2008-01-01 ~ ; フィッティングパーツ; MR18DE.MT) |
