SC11

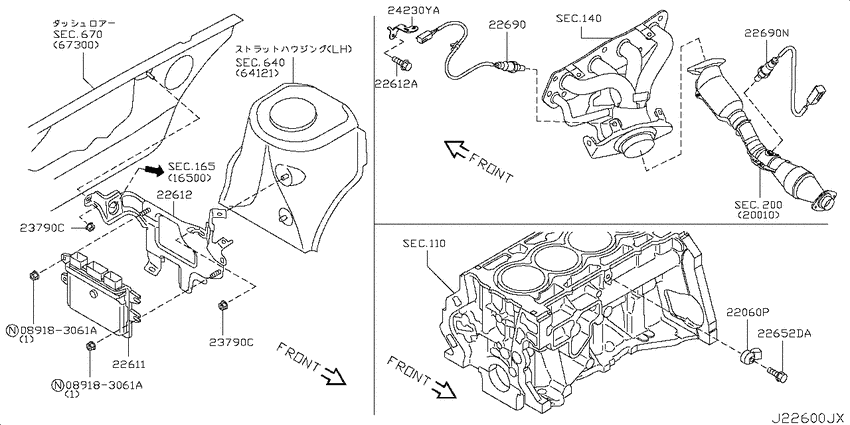

Engine control module (2008-01-01 ~ ; MR18DE) 6
| # | OEM | Part name |
|---|---|---|
| 22060 | 22060-7S000 | Knock Sensor |
| 22611 | 23710-1JY0A | Engine Control Module |
| 22612 | 23714-ED00A | Bracket-Control Unit |
| 22612 | 01125-N8011 | Bolt |
| 23790 | 01225-00691 | NUT |
| 24230 | 24239-EN00C | Bracket-Harness |
| OEM | Part name | Category |
|---|---|---|
| 01125-N8011 | Bolt | Engine control module (2008-01-01 ~ ; MR18DE) |
| 01225-00691 | NUT | Engine control module (2008-01-01 ~ ; MR18DE) |
| 22060-7S000 | Knock Sensor | Engine control module (2008-01-01 ~ ; MR18DE) |
| 23710-1JY0A | Engine Control Module | Engine control module (2008-01-01 ~ ; MR18DE) |
| 23714-ED00A | Bracket-Control Unit | Engine control module (2008-01-01 ~ ; MR18DE) |
| 24239-EN00C | Bracket-Harness | Engine control module (2008-01-01 ~ ; MR18DE) |
