Search › Model › SC11
SC11

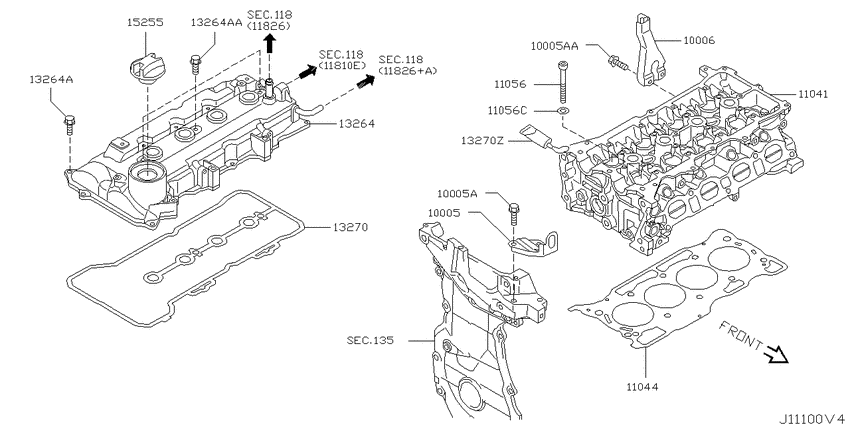

Cylinder head & rocker cover (2008-01-01 ~ ; アッセンブリー; HR15DE) 8
| # | OEM | Part name |
|---|---|---|
| 10005 | 10005-ED01A | Slinger-Engine |
| 10006 | 10006-ED00A | Slinger-Engine |
| 11041 | 11040-ED000 | Head Assy-Cylinder |
| 11044 | 11044-BC20C | Gasket-Cylinder Head |
| 11056 | 11056-ED000 | Bolt-Cylinder Head |
| 11056 | 11058-ED000 | Washer-Plain |
| 13264 | 01125-E6041 | Bolt |
| 13264 | 01125-E6121 | Bolt-Rocker Cover |
| OEM | Part name | Category |
|---|---|---|
| 01125-E6041 | Bolt | Cylinder head & rocker cover (2008-01-01 ~ ; アッセンブリー; HR15DE) |
| 01125-E6121 | Bolt-Rocker Cover | Cylinder head & rocker cover (2008-01-01 ~ ; アッセンブリー; HR15DE) |
| 10005-ED01A | Slinger-Engine | Cylinder head & rocker cover (2008-01-01 ~ ; アッセンブリー; HR15DE) |
| 10006-ED00A | Slinger-Engine | Cylinder head & rocker cover (2008-01-01 ~ ; アッセンブリー; HR15DE) |
| 11040-ED000 | Head Assy-Cylinder | Cylinder head & rocker cover (2008-01-01 ~ ; アッセンブリー; HR15DE) |
| 11044-BC20C | Gasket-Cylinder Head | Cylinder head & rocker cover (2008-01-01 ~ ; アッセンブリー; HR15DE) |
| 11056-ED000 | Bolt-Cylinder Head | Cylinder head & rocker cover (2008-01-01 ~ ; アッセンブリー; HR15DE) |
| 11058-ED000 | Washer-Plain | Cylinder head & rocker cover (2008-01-01 ~ ; アッセンブリー; HR15DE) |
