SC11

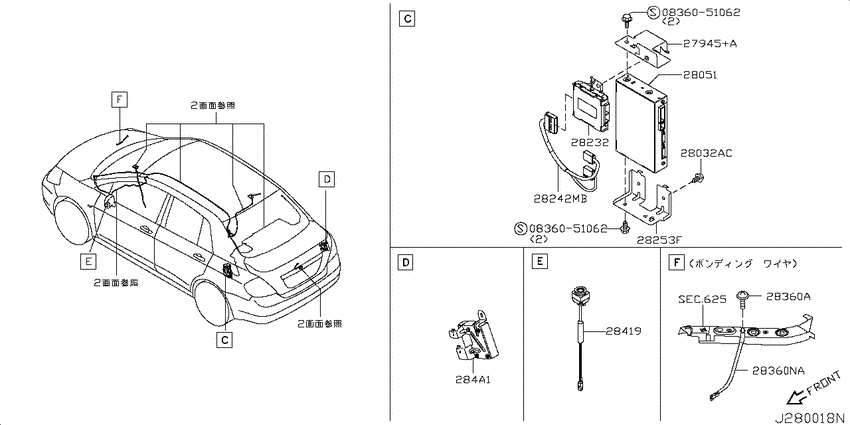

Audio & visual (2008-01-01 ~ ; ｱﾝﾃﾅ-2; S) 8
| # | OEM | Part name |
|---|---|---|
| 27945 | 28317-ED100 | Bracket |
| 28032 | 01436-01841 | SCREW |
| 28051 | 28051-89906 | Tuner Unit-Av |
| 28232 | 28232-ED005 | Amplifier-Tv |
| 28242 | 28243-ED100 | Feeder-Antenna |
| 28253 | 28316-ED100 | Bracket-Sound Balancer |
| 28360 | 28360-ED500 | Wire-Bonding |
| 836051062 | 08360-51062 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 01436-01841 | SCREW | Audio & visual (2008-01-01 ~ ; ｱﾝﾃﾅ-2; S) |
| 08360-51062 | スクリユ-,マシン | Audio & visual (2008-01-01 ~ ; ｱﾝﾃﾅ-2; S) |
| 28051-89906 | Tuner Unit-Av | Audio & visual (2008-01-01 ~ ; ｱﾝﾃﾅ-2; S) |
| 28232-ED005 | Amplifier-Tv | Audio & visual (2008-01-01 ~ ; ｱﾝﾃﾅ-2; S) |
| 28243-ED100 | Feeder-Antenna | Audio & visual (2008-01-01 ~ ; ｱﾝﾃﾅ-2; S) |
| 28316-ED100 | Bracket-Sound Balancer | Audio & visual (2008-01-01 ~ ; ｱﾝﾃﾅ-2; S) |
| 28317-ED100 | Bracket | Audio & visual (2008-01-01 ~ ; ｱﾝﾃﾅ-2; S) |
| 28360-ED500 | Wire-Bonding | Audio & visual (2008-01-01 ~ ; ｱﾝﾃﾅ-2; S) |
