SB308

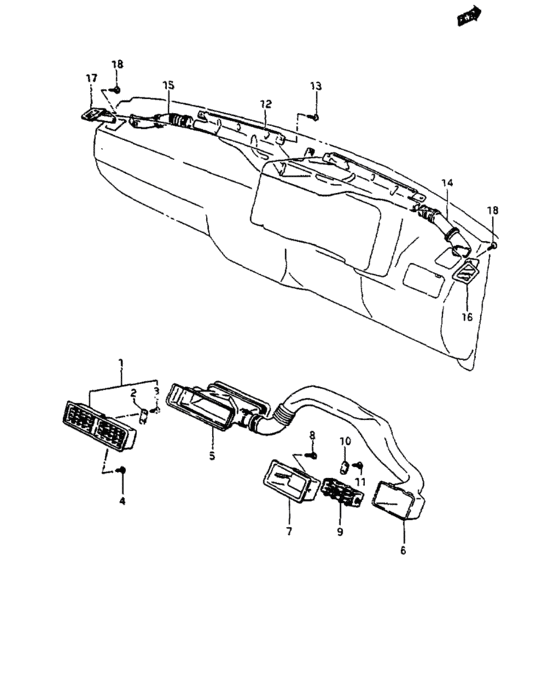

Ventilator (VENTILATOR) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 73610-84000-281 | ルーバアッシ,センタベンチレータ (ブラック) |
| 1 | 73610-84000-5PK | LOUVER ASSY,CTR VENT |
| 2 | 62821-78000-000 | HOLDER,CTR VENTILATOR LOUVER |
| 3 | 03541-04108-000 | Screw 4x10 |
| 3 | 03541-0410A-000 | SCREW |
| 4 | 03142-04129-000 | Screw |
| 4 | 03142-0412B-000 | SCREW |
| 5 | 73651-84110-000 | Duct,center vent |
| 6 | 73652-84000-000 | DUCT,SIDE VENT,R |
| 7 | 73631-84000-281 | CASE,SIDE VENT LOUVER,R |
| 7 | 73631-84000-5PK | CASE,SIDE VENT LOUVER,R |
| 9 | 73620-84000-281 | フィン,ベンチレータ,ルーバ |
| 9 | 73620-84000-5PK | FIN,VENT LOUVER |
| 12 | 73661-84000-000 | Nozzle,defroster |
| 13 | 03142-04169-000 | Screw |
| 13 | 03141-0416A-000 | SCREW |
| 14 | 73696-84000-000 | HOSE,SIDE DEMISTER,R |
| 15 | 73697-84000-000 | HOSE,SIDE DEMISTER,L |
| 16 | 73680-84000-4BS | NOZZLE,SIDE DEMISTER,R |
| 17 | 73690-84000-4BS | NOZZLE,SIDE DEMISTER,L |
| OEM | Part name | Category |
|---|---|---|
| 03141-0416A-000 | SCREW | Ventilator (VENTILATOR) |
| 03142-04129-000 | Screw | Ventilator (VENTILATOR) |
| 03142-0412B-000 | SCREW | Ventilator (VENTILATOR) |
| 03142-04169-000 | Screw | Ventilator (VENTILATOR) |
| 03541-04108-000 | Screw 4x10 | Ventilator (VENTILATOR) |
| 03541-0410A-000 | SCREW | Ventilator (VENTILATOR) |
| 62821-78000-000 | HOLDER,CTR VENTILATOR LOUVER | Ventilator (VENTILATOR) |
| 73610-84000-281 | ルーバアッシ,センタベンチレータ (ブラック) | Ventilator (VENTILATOR) |
| 73610-84000-5PK | LOUVER ASSY,CTR VENT | Ventilator (VENTILATOR) |
| 73620-84000-281 | フィン,ベンチレータ,ルーバ | Ventilator (VENTILATOR) |
| 73620-84000-5PK | FIN,VENT LOUVER | Ventilator (VENTILATOR) |
| 73631-84000-281 | CASE,SIDE VENT LOUVER,R | Ventilator (VENTILATOR) |
| 73631-84000-5PK | CASE,SIDE VENT LOUVER,R | Ventilator (VENTILATOR) |
| 73651-84110-000 | Duct,center vent | Ventilator (VENTILATOR) |
| 73652-84000-000 | DUCT,SIDE VENT,R | Ventilator (VENTILATOR) |
| 73661-84000-000 | Nozzle,defroster | Ventilator (VENTILATOR) |
| 73680-84000-4BS | NOZZLE,SIDE DEMISTER,R | Ventilator (VENTILATOR) |
| 73690-84000-4BS | NOZZLE,SIDE DEMISTER,L | Ventilator (VENTILATOR) |
| 73696-84000-000 | HOSE,SIDE DEMISTER,R | Ventilator (VENTILATOR) |
| 73697-84000-000 | HOSE,SIDE DEMISTER,L | Ventilator (VENTILATOR) |
