SB308

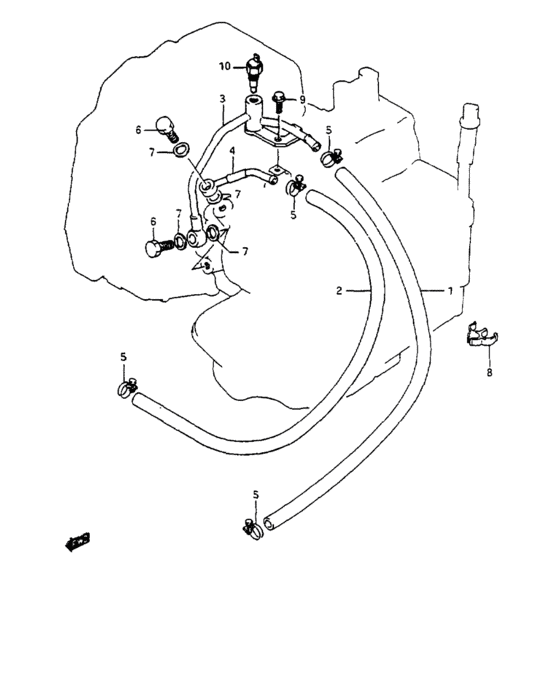

Oil hose (AT) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 24891-84502-000 | ホース,オイル,アウトレット |
| 1 | 24891-56X51-000 | HOSE SET |
| 2 | 24892-84503-000 | ホース,オイル |
| 3 | 24893-84521-000 | パイプ,オイル,アウトレット |
| 4 | 24894-84502-000 | パイプ,オイル,インレット |
| 5 | 09400-15302-000 | Clamp |
| 5 | 09400-15311-000 | CLAMP |
| 6 | 09360-10032-000 | Bolt, union (10x24) - Union bolt |
| 6 | 09360-10055-000 | UNION - Bolt, oil pipe union |
| 7 | 09168-10028-000 | GASKET(10X15X1) |
| 8 | 09408-00043-000 | CLAMP - Holder, fuse case |
| 9 | 01517-06163-000 | Bolt |
| 9 | 01550-0616B-000 | Bolt |
| 9 | 01550-0616A-000 | Bolt |
| 10 | 24840-78431-000 | SWITCH,OIL THERMO |
| OEM | Part name | Category |
|---|---|---|
| 01517-06163-000 | Bolt | Oil hose (AT) |
| 01550-0616A-000 | Bolt | Oil hose (AT) |
| 01550-0616B-000 | Bolt | Oil hose (AT) |
| 09168-10028-000 | GASKET(10X15X1) | Oil hose (AT) |
| 09360-10032-000 | Bolt, union (10x24) - Union bolt | Oil hose (AT) |
| 09360-10055-000 | UNION - Bolt, oil pipe union | Oil hose (AT) |
| 09400-15302-000 | Clamp | Oil hose (AT) |
| 09400-15311-000 | CLAMP | Oil hose (AT) |
| 09408-00043-000 | CLAMP - Holder, fuse case | Oil hose (AT) |
| 24840-78431-000 | SWITCH,OIL THERMO | Oil hose (AT) |
| 24891-56X51-000 | HOSE SET | Oil hose (AT) |
| 24891-84502-000 | ホース,オイル,アウトレット | Oil hose (AT) |
| 24892-84503-000 | ホース,オイル | Oil hose (AT) |
| 24893-84521-000 | パイプ,オイル,アウトレット | Oil hose (AT) |
| 24894-84502-000 | パイプ,オイル,インレット | Oil hose (AT) |
