SB308

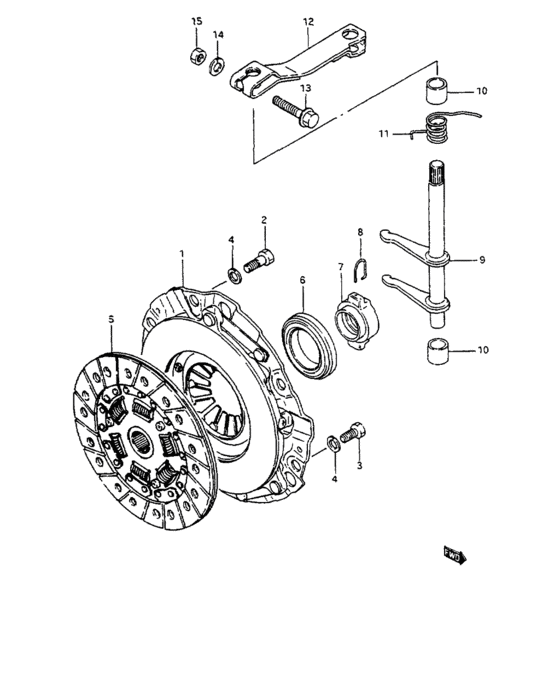

Clutch (MT) 29
| # | OEM | Part name |
|---|---|---|
| 1 | 22100-78413-000 | Cover assy, clutch |
| 1 | 22100-84310-000 | COVER ASSY,CLUTCH |
| 2 | 09111-08035-000 | BOLT(8X20) |
| 3 | 01107-08163-000 | Bolt m8x1.25x16 |
| 3 | 01500-0816B-000 | Bolt |
| 3 | 01500-08163-000 | Bolt |
| 4 | 08321-21083-000 | Washr,lk8.2x15. - Lock washer |
| 4 | 08321-0108B-000 | WASHER,LOCK |
| 4 | 08321-0108A-000 | WASHER,LOCK |
| 5 | 22400-84320-000 | ディスク,クラッチ |
| 5 | 22400-84321-000 | DISC,CLUTCH |
| 6 | 09269-35003-000 | Bearing, release |
| 7 | 23161-58002-000 | Retainer, release bearing |
| 7 | 23265-84300-000 | BEARING |
| 8 | 09448-12005-000 | SPRING |
| 9 | 23260-74002-000 | Shaft,clutch release |
| 9 | 23260-74020-000 | SHAFT,CLUTCH RELEASE |
| 10 | 09300-12011-000 | BUSH(12X16X15) |
| 11 | 09448-18008-000 | SPRING |
| 12 | 23266-78400-000 | ARM,CLUTCH RELEASE |
| 13 | 01517-08353-000 | Bolt |
| 13 | 01550-0835B-000 | Bolt |
| 13 | 01550-0835A-000 | Bolt |
| 14 | 08322-11083-000 | Washer |
| 14 | 08322-0108B-000 | WASHER |
| 14 | 08322-0108A-000 | WASHER |
| 15 | 08310-11083-000 | NUT M8X125X65 |
| 15 | 08310-0008A-000 | NUT - Nut, bead stopper |
| 15 | 08310-0008B-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 01107-08163-000 | Bolt m8x1.25x16 | Clutch (MT) |
| 01500-08163-000 | Bolt | Clutch (MT) |
| 01500-0816B-000 | Bolt | Clutch (MT) |
| 01517-08353-000 | Bolt | Clutch (MT) |
| 01550-0835A-000 | Bolt | Clutch (MT) |
| 01550-0835B-000 | Bolt | Clutch (MT) |
| 08310-0008A-000 | NUT - Nut, bead stopper | Clutch (MT) |
| 08310-0008B-000 | NUT | Clutch (MT) |
| 08310-11083-000 | NUT M8X125X65 | Clutch (MT) |
| 08321-0108A-000 | WASHER,LOCK | Clutch (MT) |
| 08321-0108B-000 | WASHER,LOCK | Clutch (MT) |
| 08321-21083-000 | Washr,lk8.2x15. - Lock washer | Clutch (MT) |
| 08322-0108A-000 | WASHER | Clutch (MT) |
| 08322-0108B-000 | WASHER | Clutch (MT) |
| 08322-11083-000 | Washer | Clutch (MT) |
| 09111-08035-000 | BOLT(8X20) | Clutch (MT) |
| 09269-35003-000 | Bearing, release | Clutch (MT) |
| 09300-12011-000 | BUSH(12X16X15) | Clutch (MT) |
| 09448-12005-000 | SPRING | Clutch (MT) |
| 09448-18008-000 | SPRING | Clutch (MT) |
| 22100-78413-000 | Cover assy, clutch | Clutch (MT) |
| 22100-84310-000 | COVER ASSY,CLUTCH | Clutch (MT) |
| 22400-84320-000 | ディスク,クラッチ | Clutch (MT) |
| 22400-84321-000 | DISC,CLUTCH | Clutch (MT) |
| 23161-58002-000 | Retainer, release bearing | Clutch (MT) |
| 23260-74002-000 | Shaft,clutch release | Clutch (MT) |
| 23260-74020-000 | SHAFT,CLUTCH RELEASE | Clutch (MT) |
| 23265-84300-000 | BEARING | Clutch (MT) |
| 23266-78400-000 | ARM,CLUTCH RELEASE | Clutch (MT) |
