Search › Model › SB308
SB308

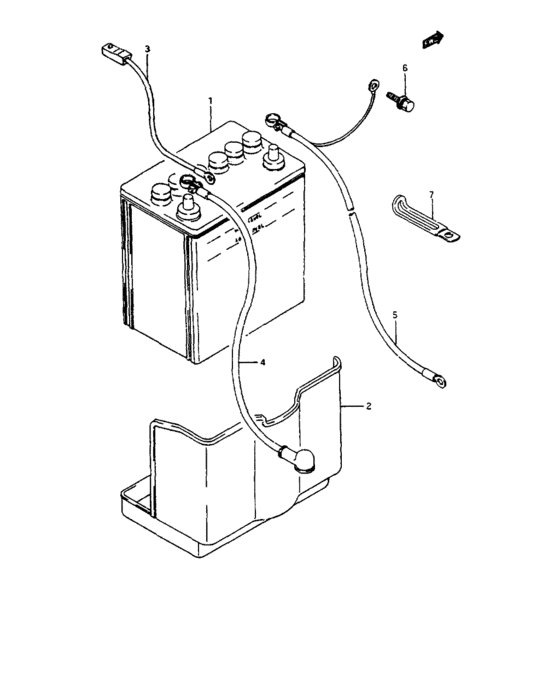

Battery (BATTERY) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-80020-000 | バッテリ,28B19RーMF,12V24AH/5HR,YB |
| 1 | 33610-750V1-000 | BATTERY ASSY,38B19R (Cannot supply) |
| 2 | 33660-78000-000 | TRAY,BATTERY |
| 3 | 36740-80000-000 | FUSIBLE LINK |
| 4 | 33810-84100-000 | ケーブル,スターティングモータ |
| 4 | 33800-81401-000 | CABLE,STARTING MOTOR |
| 5 | 33850-84101-000 | ケーブル,バッテリグランド |
| 5 | 33850-70B10-000 | CABLE,BTRY GND |
| 6 | 09115-06001-000 | Bolt, lh - Bolt (6x16) |
| 6 | 09115-06005-000 | BOLT(6X16) |
| 7 | 09404-08413-000 | Alternator w cl - Clamp, stop switch read cord |
| 7 | 09404-08420-000 | CLAMP(L:120 T:1.0) |
| OEM | Part name | Category |
|---|---|---|
| 09115-06001-000 | Bolt, lh - Bolt (6x16) | Battery (BATTERY) |
| 09115-06005-000 | BOLT(6X16) | Battery (BATTERY) |
| 09404-08413-000 | Alternator w cl - Clamp, stop switch read cord | Battery (BATTERY) |
| 09404-08420-000 | CLAMP(L:120 T:1.0) | Battery (BATTERY) |
| 33610-750V1-000 | BATTERY ASSY,38B19R (Cannot supply) | Battery (BATTERY) |
| 33610-80020-000 | バッテリ,28B19RーMF,12V24AH/5HR,YB | Battery (BATTERY) |
| 33660-78000-000 | TRAY,BATTERY | Battery (BATTERY) |
| 33800-81401-000 | CABLE,STARTING MOTOR | Battery (BATTERY) |
| 33810-84100-000 | ケーブル,スターティングモータ | Battery (BATTERY) |
| 33850-70B10-000 | CABLE,BTRY GND | Battery (BATTERY) |
| 33850-84101-000 | ケーブル,バッテリグランド | Battery (BATTERY) |
| 36740-80000-000 | FUSIBLE LINK | Battery (BATTERY) |
