SAFARI

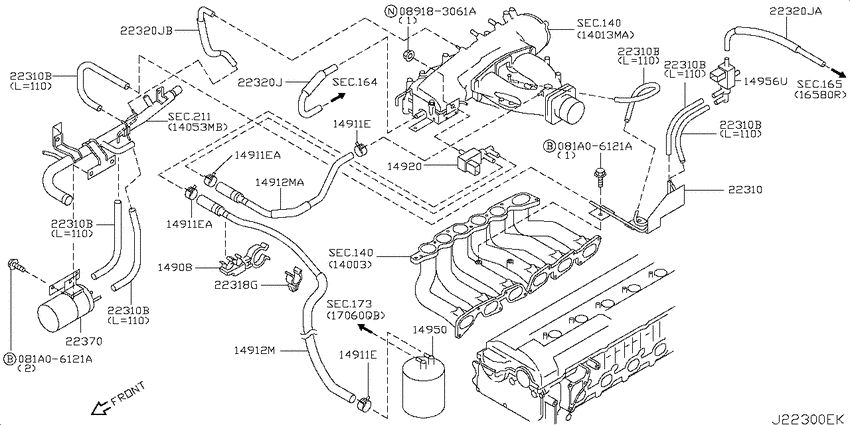

Vacuum piping (2002-11-01 ~ ; TB48DE) 13
| # | OEM | Part name |
|---|---|---|
| 14908 | 24220-79907 | Clip-Throttle Wire |
| 14911 | 16439-N2100 | Clamp-Hose |
| 14912 | 22320-VC700 | Hose-Evap Control |
| 14912 | 22320-VC705 | Hose-Evap Control |
| 14920 | 14930-AH100 | Valve Assy-Control |
| 14950 | 14950-VG300 | Canister Assy-Evaporation |
| 14956 | 14956-38U01 | Valve Assy-Solenoid |
| 22310 | 22310-VC200 | Gallery Assy-Vacuum |
| 22310 | 22310-VC20A | Gallery Assy-Vacuum |
| 22320 | 18961-VC200 | Hose-Vacuum Control, B |
| 22320 | 18961-VC205 | Hose-Vacuum Control, B |
| 22370 | 22370-VC200 | Tank Assy-Pressure |
| 22370 | 22370-VC20B | Tank Assy-Pressure |
| OEM | Part name | Category |
|---|---|---|
| 14930-AH100 | Valve Assy-Control | Vacuum piping (2002-11-01 ~ ; TB48DE) |
| 14950-VG300 | Canister Assy-Evaporation | Vacuum piping (2002-11-01 ~ ; TB48DE) |
| 14956-38U01 | Valve Assy-Solenoid | Vacuum piping (2002-11-01 ~ ; TB48DE) |
| 16439-N2100 | Clamp-Hose | Vacuum piping (2002-11-01 ~ ; TB48DE) |
| 18961-VC200 | Hose-Vacuum Control, B | Vacuum piping (2002-11-01 ~ ; TB48DE) |
| 18961-VC205 | Hose-Vacuum Control, B | Vacuum piping (2002-11-01 ~ ; TB48DE) |
| 22310-VC200 | Gallery Assy-Vacuum | Vacuum piping (2002-11-01 ~ ; TB48DE) |
| 22310-VC20A | Gallery Assy-Vacuum | Vacuum piping (2002-11-01 ~ ; TB48DE) |
| 22320-VC700 | Hose-Evap Control | Vacuum piping (2002-11-01 ~ ; TB48DE) |
| 22320-VC705 | Hose-Evap Control | Vacuum piping (2002-11-01 ~ ; TB48DE) |
| 22370-VC200 | Tank Assy-Pressure | Vacuum piping (2002-11-01 ~ ; TB48DE) |
| 22370-VC20B | Tank Assy-Pressure | Vacuum piping (2002-11-01 ~ ; TB48DE) |
| 24220-79907 | Clip-Throttle Wire | Vacuum piping (2002-11-01 ~ ; TB48DE) |
