SAFARI

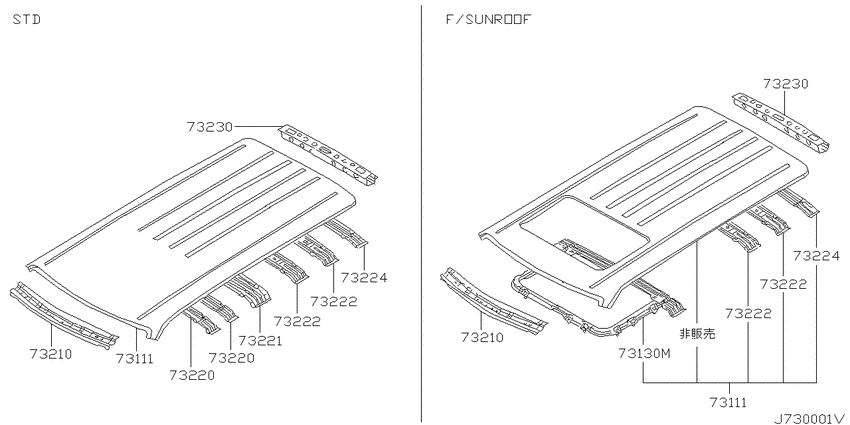

Roof panel & fitting (2002-11-01 ~ ; W) 12
| # | OEM | Part name |
|---|---|---|
| 73111 | 73100-VB010 | Roof |
| 73111 | 73112-VB000 | Roof |
| 73130 | 73120-VB010 | Reinforce Assy-Roof |
| 73210 | 73210-VB000 | Rail-Front Roof |
| 73210 | 73210-VD200 | Rail-Front Roof |
| 73220 | 73242-VB000 | Bow-Roof, No 1 |
| 73221 | 73252-VB000 | Bow-Roof, No 2 |
| 73222 | 73262-VB000 | Bow-Roof, No 3 |
| 73224 | 73282-VB000 | Bow-Roof, No 5 |
| 73230 | 73230-VB000 | Rail-Rear Roof |
| 73230 | 73230-VD200 | Rail-Rear Roof |
| 73230 | 73230-VD201 | Rail-Rear Roof |
| OEM | Part name | Category |
|---|---|---|
| 73100-VB010 | Roof | Roof panel & fitting (2002-11-01 ~ ; W) |
| 73112-VB000 | Roof | Roof panel & fitting (2002-11-01 ~ ; W) |
| 73120-VB010 | Reinforce Assy-Roof | Roof panel & fitting (2002-11-01 ~ ; W) |
| 73210-VB000 | Rail-Front Roof | Roof panel & fitting (2002-11-01 ~ ; W) |
| 73210-VD200 | Rail-Front Roof | Roof panel & fitting (2002-11-01 ~ ; W) |
| 73230-VB000 | Rail-Rear Roof | Roof panel & fitting (2002-11-01 ~ ; W) |
| 73230-VD200 | Rail-Rear Roof | Roof panel & fitting (2002-11-01 ~ ; W) |
| 73230-VD201 | Rail-Rear Roof | Roof panel & fitting (2002-11-01 ~ ; W) |
| 73242-VB000 | Bow-Roof, No 1 | Roof panel & fitting (2002-11-01 ~ ; W) |
| 73252-VB000 | Bow-Roof, No 2 | Roof panel & fitting (2002-11-01 ~ ; W) |
| 73262-VB000 | Bow-Roof, No 3 | Roof panel & fitting (2002-11-01 ~ ; W) |
| 73282-VB000 | Bow-Roof, No 5 | Roof panel & fitting (2002-11-01 ~ ; W) |
