Search › Model › SAFARI
SAFARI

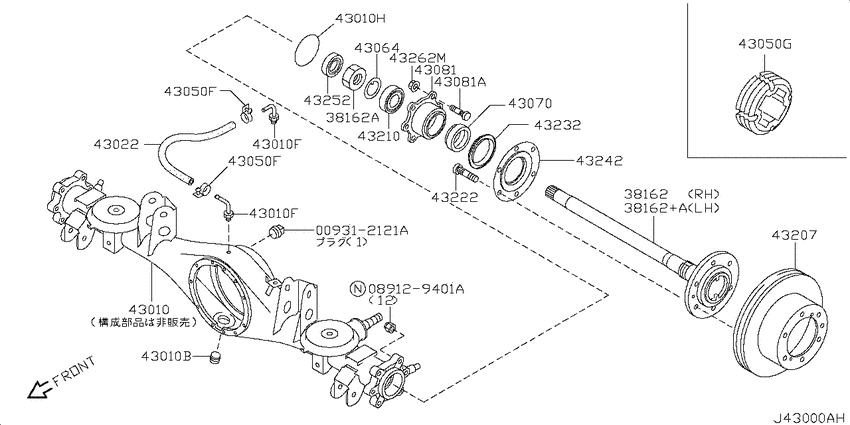

Rear axle (2005-11-01 ~ ; TB48DE) 14
| # | OEM | Part name |
|---|---|---|
| 38162 | 38164-VB170 | Shaft Assy-Rear Axle |
| 38162 | 38164-VB180 | Shaft Assy-Rear Axle |
| 38162 | 38165-VB170 | Shaft Assy-Rear Axle |
| 38162 | 38165-VB180 | Shaft Assy-Rear Axle |
| 43010 | 43010-VC305 | Case Assy-Rear Axle |
| 43010 | 43010-VC315 | Case Assy-Rear Axle |
| 43010 | 32103-U8401 | Plug-Drain |
| 43010 | 38323-01J00 | Connector-Breather Hose |
| 43022 | 38324-01J10 | Hose-Breather, Rear Axle |
| 43050 | 16439-N2103 | Clip |
| 43207 | 43206-VC200 | Rotor-Disc Brake, Rear |
| 43232 | 43232-01J00 | Seal-Grease, Rear Hub |
| 43242 | 43242-01J00 | Catcher-Grease, Rear Axle |
| 43262 | 43262-VC200 | Nut-Lock, Rear Wheel Bearing |
| OEM | Part name | Category |
|---|---|---|
| 16439-N2103 | Clip | Rear axle (2005-11-01 ~ ; TB48DE) |
| 32103-U8401 | Plug-Drain | Rear axle (2005-11-01 ~ ; TB48DE) |
| 38164-VB170 | Shaft Assy-Rear Axle | Rear axle (2005-11-01 ~ ; TB48DE) |
| 38164-VB180 | Shaft Assy-Rear Axle | Rear axle (2005-11-01 ~ ; TB48DE) |
| 38165-VB170 | Shaft Assy-Rear Axle | Rear axle (2005-11-01 ~ ; TB48DE) |
| 38165-VB180 | Shaft Assy-Rear Axle | Rear axle (2005-11-01 ~ ; TB48DE) |
| 38323-01J00 | Connector-Breather Hose | Rear axle (2005-11-01 ~ ; TB48DE) |
| 38324-01J10 | Hose-Breather, Rear Axle | Rear axle (2005-11-01 ~ ; TB48DE) |
| 43010-VC305 | Case Assy-Rear Axle | Rear axle (2005-11-01 ~ ; TB48DE) |
| 43010-VC315 | Case Assy-Rear Axle | Rear axle (2005-11-01 ~ ; TB48DE) |
| 43206-VC200 | Rotor-Disc Brake, Rear | Rear axle (2005-11-01 ~ ; TB48DE) |
| 43232-01J00 | Seal-Grease, Rear Hub | Rear axle (2005-11-01 ~ ; TB48DE) |
| 43242-01J00 | Catcher-Grease, Rear Axle | Rear axle (2005-11-01 ~ ; TB48DE) |
| 43262-VC200 | Nut-Lock, Rear Wheel Bearing | Rear axle (2005-11-01 ~ ; TB48DE) |
