| 01522-10224 |
PIN-CRANKSHAFT |

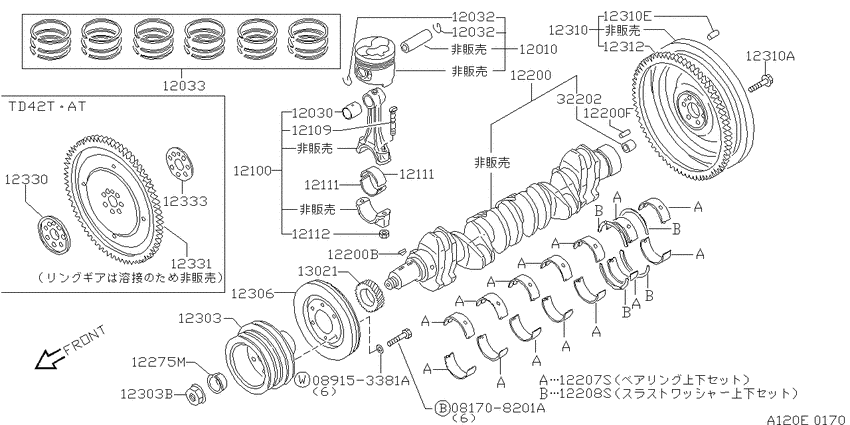

Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 08170-8201A |
Bolt-hexagon |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12010-09D01 |
Piston, W/pin |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12010-09D02 |
Piston, W/pin |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12010-09D11 |
Piston, W/pin |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12010-09D12 |
Piston, W/pin |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12032-54T00 |
Ring-Snap |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12033-WJ115 |
Ring Set-Piston |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12033-WJ116 |
Ring Set-Piston |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12100-0W801 |
Rod Compl-Connecting |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12109-43G00 |
Bolt-Connecting Rod |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12112-43G00 |
Nut-Connecting Rod |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12117-2W200 |
Bearing-Connecting Rod |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12118-2W200 |
Bearing-Connecting Rod |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12119-2W200 |
Bearing-Connecting Rod |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12120-2W200 |
Bearing-Connecting Rod |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12200-51N01 |
Crankshaft Assy |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12207-WJ110 |
Bearing Set-Crankshaft |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12209-WJ110 |
Bearing Set-Crankshaft (0.25mm) - US=0.25 NDC |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12210-WJ110 |
Bearing Set-Crankshaft |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12211-WJ110 |
Bearing Set-Crankshaft |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12212-WJ110 |
Bearing Set-Crankshaft |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12280-37525 |
Washer Set-Thrust |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12280-37526 |
Washer Set-Thrust |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12280-37527 |
Washer Set-Thrust |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12280-37528 |
Washer Set-Thrust (OS 0.20) |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12280-37529 |
Washer Set-Thrust |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12305-51N00 |
Pulley-Crankshaft |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12305-51N01 |
Pulley-Crankshaft |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12306-51N01 |
Damper Assy-Crankshaft |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12307-Z5000 |
Spacer-Crankshaft, Rear |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12312-06J00 |
Gear-Ring |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 12315-2W200 |
Bolt-Flywheel |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 13021-51N00 |
Sprocket-Crankshaft |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
| 32202-B9500 |
Bushing-Crankshaft |
Piston,crankshaft & flywheel (1999-09-01 ~ 2002-11-01; TD42T) |
