Search › Model › SAFARI

SAFARI

Nissan SAFARI · 1980 · 6,567 parts · 681 categories

6,567 items

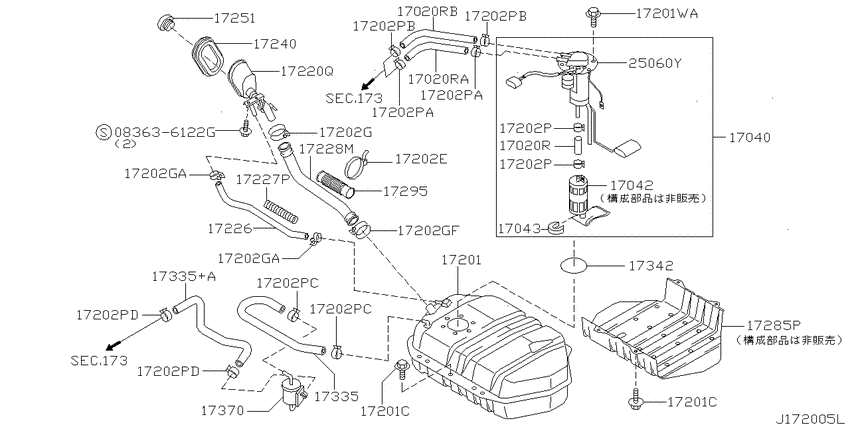

Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE) 36

#	OEM	Part name
17020	01995-00111	HOSE-FUEL
17020	08740-05039	HOSE-FUEL
17201	17202-VB800	Tank Assy-Fuel
17201	17202-VC700	Tank Assy-Fuel
17201	17202-VD20A	Tank Assy-Fuel
17201	17202-VD22A	Tank Assy-Fuel
17201	17202-VD23A	Tank Assy-Fuel
17201	01121-04831	BOLT
17202	01552-00431	CLAMP
17202	24220-29R00	Clip
17202	01555-00311	CLAMP-HOSE
17202	01555-00231	CLAMP
17202	01555-00291	CLAMP-HOSE
17202	16439-35F15	Clamp
17202	16439-N4710	Clamp-Hose
17202	01558-00401	CLAMP-HOSE
17220	17221-VB000	Tube Assy-Filler
17220	17221-VC700	Tube Assy-Filler
17226	17226-VC700	Hose-Ventilation
17227	17227-70T00	Protector-Ventilation Hose
17227	17227-72F20	Protector
17228	17228-VC700	Hose-Filler
17240	17240-VB000	Grommet-Filler Base
17251	17251-79922	Cap Assy-Filler
17285	17285-VB000	Protector-Fuel Tank
17295	17295-40R00	Protector-Filler Hose
17335	17335-VC700	Hose-Evaporation
17335	17335-VC805	Hose-Evaporation
17335	17335-VC710	Hose-Evaporation
17335	17335-VC812	Hose-Evaporation
17335	17339-VC700	Tube-Evaporation
17370	17370-VB000	Valve Assy-Check
17370	17370-VC800	Valve Assy-Check
17370	17370-WA000	Valve Assy-Check
25060	25060-VB204	Sender Unit-Fuel Gauge
25060	25060-VC700	Sender Unit-Fuel Gauge

OEM	Part name	Category
01121-04831	BOLT	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
01552-00431	CLAMP	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
01555-00231	CLAMP	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
01555-00291	CLAMP-HOSE	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
01555-00311	CLAMP-HOSE	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
01558-00401	CLAMP-HOSE	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
01995-00111	HOSE-FUEL	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
08740-05039	HOSE-FUEL	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
16439-35F15	Clamp	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
16439-N4710	Clamp-Hose	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17202-VB800	Tank Assy-Fuel	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17202-VC700	Tank Assy-Fuel	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17202-VD20A	Tank Assy-Fuel	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17202-VD22A	Tank Assy-Fuel	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17202-VD23A	Tank Assy-Fuel	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17221-VB000	Tube Assy-Filler	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17221-VC700	Tube Assy-Filler	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17226-VC700	Hose-Ventilation	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17227-70T00	Protector-Ventilation Hose	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17227-72F20	Protector	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17228-VC700	Hose-Filler	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17240-VB000	Grommet-Filler Base	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17251-79922	Cap Assy-Filler	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17285-VB000	Protector-Fuel Tank	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17295-40R00	Protector-Filler Hose	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17335-VC700	Hose-Evaporation	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17335-VC710	Hose-Evaporation	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17335-VC805	Hose-Evaporation	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17335-VC812	Hose-Evaporation	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17339-VC700	Tube-Evaporation	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17370-VB000	Valve Assy-Check	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17370-VC800	Valve Assy-Check	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
17370-WA000	Valve Assy-Check	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
24220-29R00	Clip	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
25060-VB204	Sender Unit-Fuel Gauge	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
25060-VC700	Sender Unit-Fuel Gauge	Fuel tank (2002-11-01 ~ 2004-08-01; TB48DE)
