SAFARI

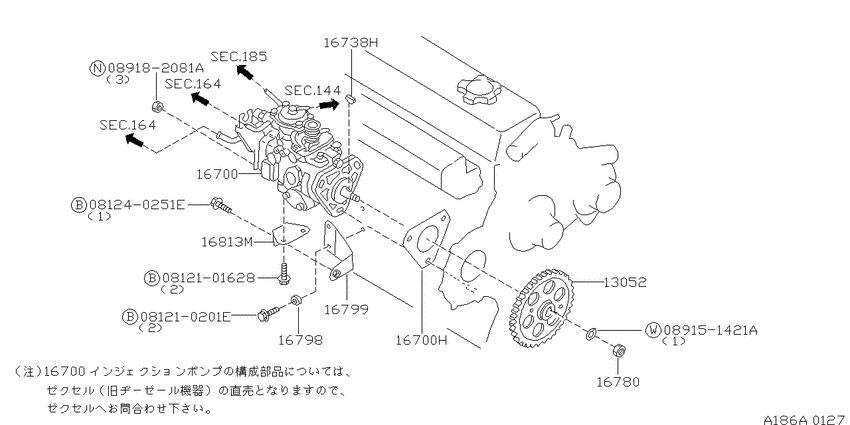

Fuel injection pump (1999-09-01 ~ 2002-11-01; TD42T) 6
| # | OEM | Part name |
|---|---|---|
| 13052 | 16735-06J00 | Gear-Drive, Injection Pump |
| 16700 | 16700-VB910 | Pump Assy-Injection |
| 16780 | 01211-01054 | NUT |
| 16798 | 16420-43G00 | Washer |
| 16799 | 16811-0Y701 | Bracket-Injection |
| 16813 | 16814-06J00 | Bracket-Injection |
| OEM | Part name | Category |
|---|---|---|
| 01211-01054 | NUT | Fuel injection pump (1999-09-01 ~ 2002-11-01; TD42T) |
| 16420-43G00 | Washer | Fuel injection pump (1999-09-01 ~ 2002-11-01; TD42T) |
| 16700-VB910 | Pump Assy-Injection | Fuel injection pump (1999-09-01 ~ 2002-11-01; TD42T) |
| 16735-06J00 | Gear-Drive, Injection Pump | Fuel injection pump (1999-09-01 ~ 2002-11-01; TD42T) |
| 16811-0Y701 | Bracket-Injection | Fuel injection pump (1999-09-01 ~ 2002-11-01; TD42T) |
| 16814-06J00 | Bracket-Injection | Fuel injection pump (1999-09-01 ~ 2002-11-01; TD42T) |
