SAFARI

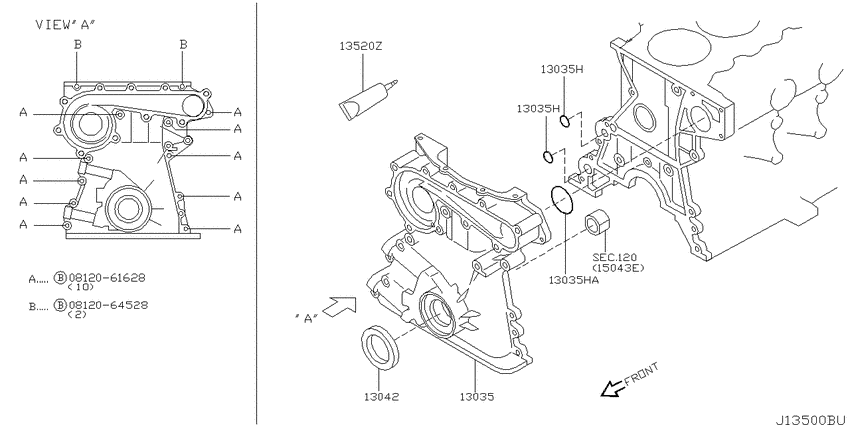

Front cover & fitting (2002-11-01 ~ ; TB48DE) 6
| # | OEM | Part name |
|---|---|---|
| 13035 | 13500-VC203 | Cover Assy-Front |
| 13035 | 13500-VC204 | Cover Assy-Front |
| 13035 | 13500-VC20A | Cover Assy-Front, Timing Chain |
| 13035 | 15066-03J0A | Seal-O Ring |
| 13035 | 21049-VC210 | Seal-O Ring |
| 812064528 | 08120-64528 | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08120-64528 | Bolt-hexagon | Front cover & fitting (2002-11-01 ~ ; TB48DE) |
| 13500-VC203 | Cover Assy-Front | Front cover & fitting (2002-11-01 ~ ; TB48DE) |
| 13500-VC204 | Cover Assy-Front | Front cover & fitting (2002-11-01 ~ ; TB48DE) |
| 13500-VC20A | Cover Assy-Front, Timing Chain | Front cover & fitting (2002-11-01 ~ ; TB48DE) |
| 15066-03J0A | Seal-O Ring | Front cover & fitting (2002-11-01 ~ ; TB48DE) |
| 21049-VC210 | Seal-O Ring | Front cover & fitting (2002-11-01 ~ ; TB48DE) |
