SAFARI

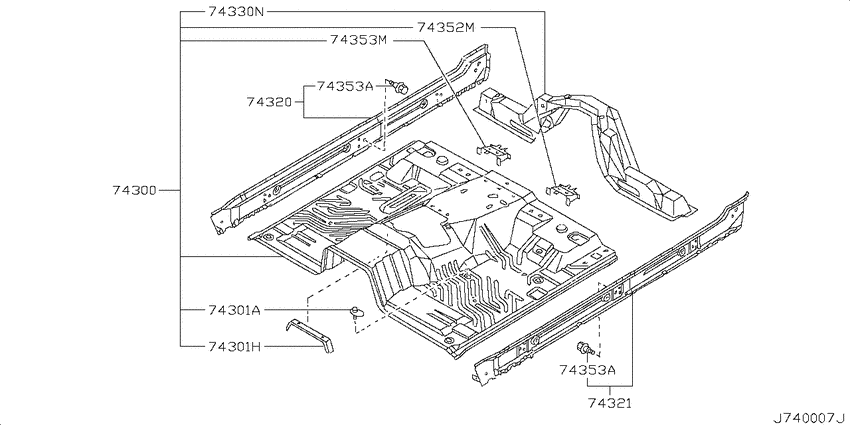

Floor panel (2005-11-01 ~ ; W) 15
| # | OEM | Part name |
|---|---|---|
| 74300 | 74300-VC300 | Floor-Front |
| 74300 | 74300-VD300 | Floor-Front |
| 74300 | 01658-00473 | PLUG-FRONT FLOOR |
| 74300 | 01658-01341 | PLUG |
| 74300 | 01658-00413 | PLUG-FRONT FLOOR |
| 74300 | 74365-E0400 | Plug-Blind, Engine Mounting |
| 74301 | 74398-10V00 | Plate-Bolt |
| 74301 | 74390-VC000 | Reinforce-Instrument Stay |
| 74320 | 76450-VC300 | Sill-Inner, Rh |
| 74321 | 76451-VC300 | Sill-Inner, Lh |
| 74330 | 74330-VB000 | Member Assy-Cross, 2Nd |
| 74352 | 74340-VB000 | Bracket-Front Seat Mounting, Inner Rh |
| 74353 | 01111-00891 | BOLT |
| 74353 | 01121-03901 | BOLT |
| 74353 | 74341-VB000 | Bracket-Front Seat Mounting, Inner Lh |
| OEM | Part name | Category |
|---|---|---|
| 01111-00891 | BOLT | Floor panel (2005-11-01 ~ ; W) |
| 01121-03901 | BOLT | Floor panel (2005-11-01 ~ ; W) |
| 01658-00413 | PLUG-FRONT FLOOR | Floor panel (2005-11-01 ~ ; W) |
| 01658-00473 | PLUG-FRONT FLOOR | Floor panel (2005-11-01 ~ ; W) |
| 01658-01341 | PLUG | Floor panel (2005-11-01 ~ ; W) |
| 74300-VC300 | Floor-Front | Floor panel (2005-11-01 ~ ; W) |
| 74300-VD300 | Floor-Front | Floor panel (2005-11-01 ~ ; W) |
| 74330-VB000 | Member Assy-Cross, 2Nd | Floor panel (2005-11-01 ~ ; W) |
| 74340-VB000 | Bracket-Front Seat Mounting, Inner Rh | Floor panel (2005-11-01 ~ ; W) |
| 74341-VB000 | Bracket-Front Seat Mounting, Inner Lh | Floor panel (2005-11-01 ~ ; W) |
| 74365-E0400 | Plug-Blind, Engine Mounting | Floor panel (2005-11-01 ~ ; W) |
| 74390-VC000 | Reinforce-Instrument Stay | Floor panel (2005-11-01 ~ ; W) |
| 74398-10V00 | Plate-Bolt | Floor panel (2005-11-01 ~ ; W) |
| 76450-VC300 | Sill-Inner, Rh | Floor panel (2005-11-01 ~ ; W) |
| 76451-VC300 | Sill-Inner, Lh | Floor panel (2005-11-01 ~ ; W) |
