| 00922-24700 |
RING-SNAP |

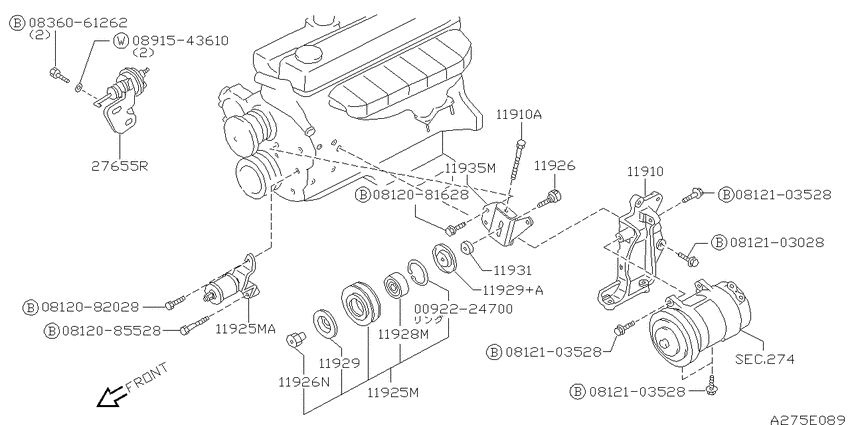

Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 08120-81628 |
Bolt-hexagon |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 08120-82028 |
Bolt-hexagon |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 08120-85528 |
Bolt-hexagon |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 08121-03028 |
Bolt-hexagon |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 08121-03528 |
Bolt-hexagon |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 08360-61262 |
スクリユ-,マシン |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 08915-43610 |
ワツシヤ-,プレ-ン |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 11910-06J00 |
Bracket-Compressor |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 11915-J5501 |
Cover-Dust, Idler Pulley |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 11915-J5502 |
Cover-Dust |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 11925-06J01 |
Roller Assy |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 11926-06J01 |
Bracket-Idler Pulley |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 11927-Y7500 |
Bolt |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 21035-65N00 |
Bearing-Ball, Idler Pulley |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 27731-37N00 |
Actuator |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 33023-90000 |
Spacer-Idler Pulley |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 69763-10G01 |
Shaft |
Compressor mounting & fitting (1999-09-01 ~ 2002-11-01; TD42T) |
