SAFARI

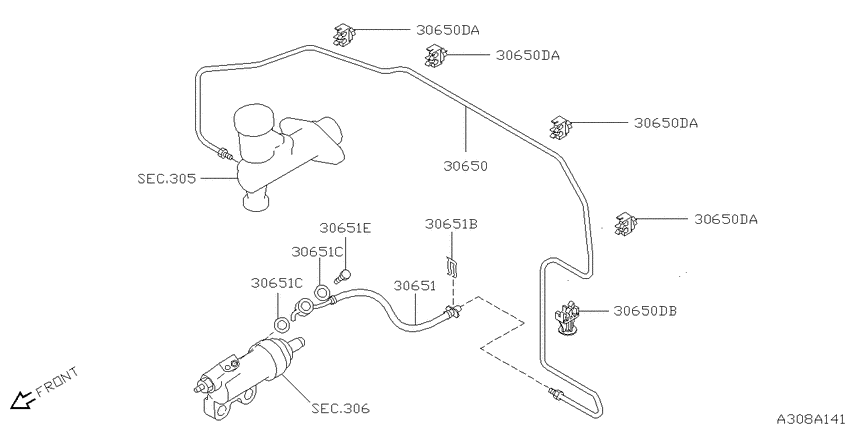

Clutch piping (1999-09-01 ~ 2002-11-01; TD42T.MT) 8
| # | OEM | Part name |
|---|---|---|
| 30650 | 30850-VB001 | Tube Assy-Clutch |
| 30650 | 30850-VB000 | Tube Assy-Clutch |
| 30650 | 46271-VB002 | Insulator |
| 30650 | 46289-70T01 | Clamp |
| 30651 | 30855-VB000 | Hose Assy-Clutch |
| 30651 | 30855-VB00C | Hose Assy-Clutch |
| 30651 | 46206-2J000 | Spring-Lock |
| 30651 | 46356-0E000 | BOLT-UNION,FRONT BRAKE HOSE |
| OEM | Part name | Category |
|---|---|---|
| 30850-VB000 | Tube Assy-Clutch | Clutch piping (1999-09-01 ~ 2002-11-01; TD42T.MT) |
| 30850-VB001 | Tube Assy-Clutch | Clutch piping (1999-09-01 ~ 2002-11-01; TD42T.MT) |
| 30855-VB000 | Hose Assy-Clutch | Clutch piping (1999-09-01 ~ 2002-11-01; TD42T.MT) |
| 30855-VB00C | Hose Assy-Clutch | Clutch piping (1999-09-01 ~ 2002-11-01; TD42T.MT) |
| 46206-2J000 | Spring-Lock | Clutch piping (1999-09-01 ~ 2002-11-01; TD42T.MT) |
| 46271-VB002 | Insulator | Clutch piping (1999-09-01 ~ 2002-11-01; TD42T.MT) |
| 46289-70T01 | Clamp | Clutch piping (1999-09-01 ~ 2002-11-01; TD42T.MT) |
| 46356-0E000 | BOLT-UNION,FRONT BRAKE HOSE | Clutch piping (1999-09-01 ~ 2002-11-01; TD42T.MT) |
