Search › Model › SAFARI
SAFARI

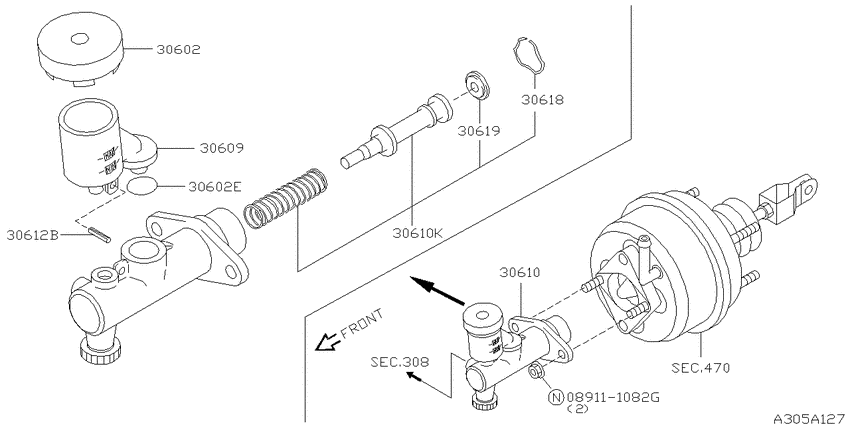

Clutch master cylinder (1999-09-01 ~ 2002-11-01; ZD30DDTI.MT +TD42T.MT) 6
| # | OEM | Part name |
|---|---|---|
| 30609 | 30617-21U00 | Reservoir-Oil, Clutch |
| 30610 | 30610-VB000 | Cylinder Assy-Clutch Master |
| 30610 | 30611-VB029 | Piston Kit-Clutch Master Cylinder |
| 30612 | 30655-21U00 | Cap |
| 30619 | 30638-T8000 | Stopper |
| 30619 | 30638-T800A | Stopper |
| OEM | Part name | Category |
|---|---|---|
| 30610-VB000 | Cylinder Assy-Clutch Master | Clutch master cylinder (1999-09-01 ~ 2002-11-01; ZD30DDTI.MT +TD42T.MT) |
| 30611-VB029 | Piston Kit-Clutch Master Cylinder | Clutch master cylinder (1999-09-01 ~ 2002-11-01; ZD30DDTI.MT +TD42T.MT) |
| 30617-21U00 | Reservoir-Oil, Clutch | Clutch master cylinder (1999-09-01 ~ 2002-11-01; ZD30DDTI.MT +TD42T.MT) |
| 30638-T8000 | Stopper | Clutch master cylinder (1999-09-01 ~ 2002-11-01; ZD30DDTI.MT +TD42T.MT) |
| 30638-T800A | Stopper | Clutch master cylinder (1999-09-01 ~ 2002-11-01; ZD30DDTI.MT +TD42T.MT) |
| 30655-21U00 | Cap | Clutch master cylinder (1999-09-01 ~ 2002-11-01; ZD30DDTI.MT +TD42T.MT) |
