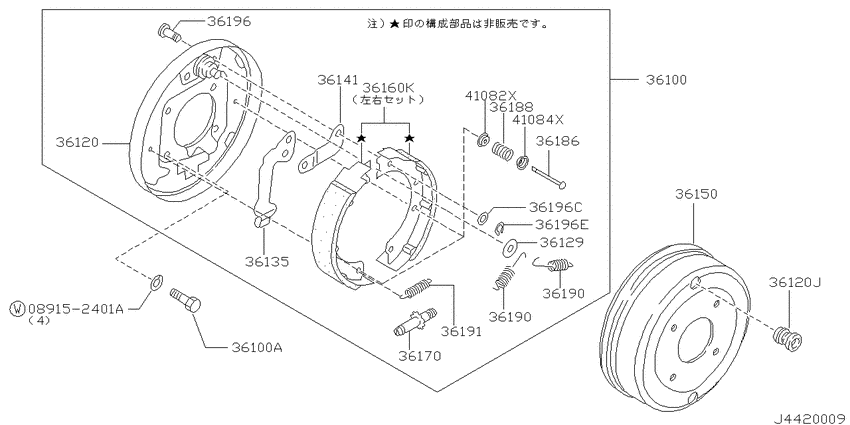

| 36100-51N10 |
Brake Assy-Center |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36100-VC200 |
Brake Assy-Center |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36107-05T10 |
Bolt |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36120-05T10 |
Plate Assy-Back, Center Brake |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36129-C6000 |
Washer-Anchor Pin |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36135-05T10 |
Lever-Brake |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36136-C6000 |
Washer-Shoe Pin |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36137-C6000 |
Pin-Shoe |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36138-C6000 |
Ring-Snap |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36141-05T10 |
Strut-Cross |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36150-05T10 |
Drum-Center Brake |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36160-51N25 |
Shoe Set-Center Brake |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36170-C6000 |
Adjuster Assy-Center Brake |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36186-0T510 |
Pin |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36188-0T510 |
Spring |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36190-C6000 |
Spring-Shoe Return |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36191-C6000 |
Spring-Adjust |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 36193-C6000 |
Retainer-Spring, Anti Shoe Rattle |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 41082-0T510 |
Seat-Spring |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
| 41084-0T510 |
Retainer-Spring |
center brake (2002-02-01 ~ 2002-11-01; TB45E +ZD30DDTI +TD42T) |
