Search › Model › SAFARI
SAFARI

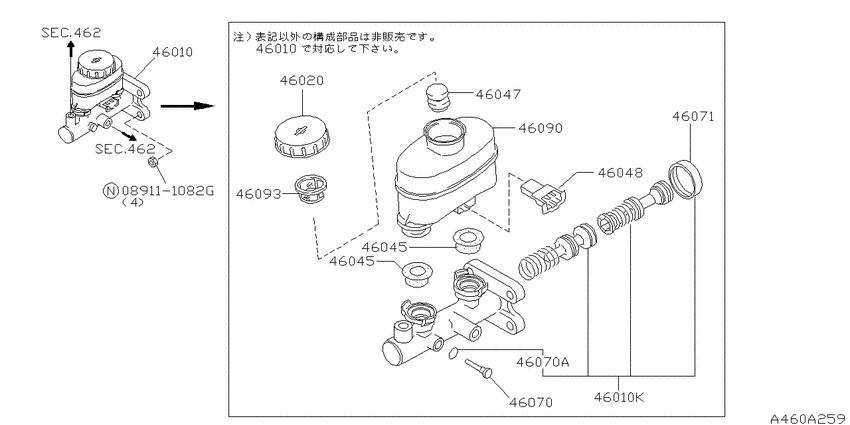

Brake master cylinder (2002-11-01 ~ ; TB48DE) 7
| # | OEM | Part name |
|---|---|---|
| 46010 | 46011-VC028 | Piston Kit-Tandem Brake Master Cylinder |
| 46047 | 46047-64J01 | Float-Reservoir Tank |
| 46048 | 46048-64J01 | Indicator Assy-Level |
| 46070 | 46032-70T00 | Screw-Stopper |
| 46070 | 46079-W1010 | Packing-Stopper Screw |
| 46071 | 46082-01A1A | Ring-Snap |
| 46090 | 46091-VB000 | Tank-Oil Reservoir |
| OEM | Part name | Category |
|---|---|---|
| 46011-VC028 | Piston Kit-Tandem Brake Master Cylinder | Brake master cylinder (2002-11-01 ~ ; TB48DE) |
| 46032-70T00 | Screw-Stopper | Brake master cylinder (2002-11-01 ~ ; TB48DE) |
| 46047-64J01 | Float-Reservoir Tank | Brake master cylinder (2002-11-01 ~ ; TB48DE) |
| 46048-64J01 | Indicator Assy-Level | Brake master cylinder (2002-11-01 ~ ; TB48DE) |
| 46079-W1010 | Packing-Stopper Screw | Brake master cylinder (2002-11-01 ~ ; TB48DE) |
| 46082-01A1A | Ring-Snap | Brake master cylinder (2002-11-01 ~ ; TB48DE) |
| 46091-VB000 | Tank-Oil Reservoir | Brake master cylinder (2002-11-01 ~ ; TB48DE) |
- Source
- Public OEM parts-catalog data
- Variants
- 2 / 82
- Category
- 681
- Collected
- 2026-07-27
