Search › Model › SAFARI
SAFARI

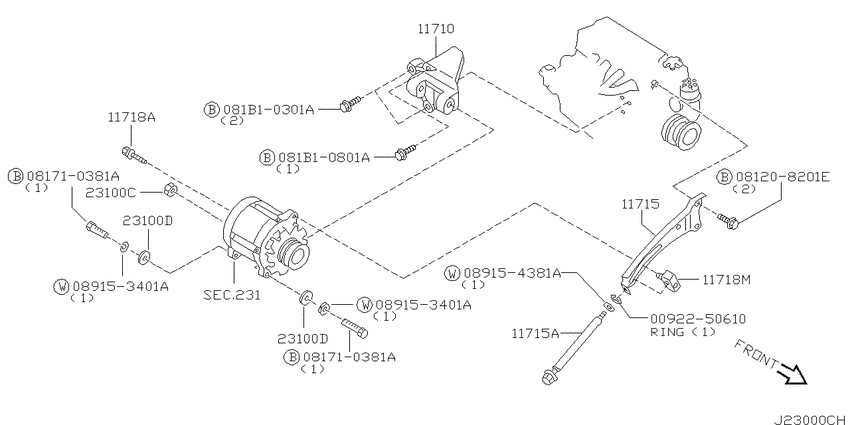

Alternator fitting (2002-11-01 ~ ; TB48DE) 7
| # | OEM | Part name |
|---|---|---|
| 11710 | 11710-VC205 | Bracket-Alternator |
| 11715 | 11715-VC200 | Bar-Adjusting, Alternator |
| 11715 | 11717-22J00 | Bolt-Adjust |
| 11718 | 01121-05851 | BOLT |
| 11718 | 11942-77A00 | Bracket-Adjust Bolt |
| 23100 | 14037-42L0A | Washer-Plain |
| 81710381 | 08171-0381A | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 01121-05851 | BOLT | Alternator fitting (2002-11-01 ~ ; TB48DE) |
| 08171-0381A | Bolt-hexagon | Alternator fitting (2002-11-01 ~ ; TB48DE) |
| 11710-VC205 | Bracket-Alternator | Alternator fitting (2002-11-01 ~ ; TB48DE) |
| 11715-VC200 | Bar-Adjusting, Alternator | Alternator fitting (2002-11-01 ~ ; TB48DE) |
| 11717-22J00 | Bolt-Adjust | Alternator fitting (2002-11-01 ~ ; TB48DE) |
| 11942-77A00 | Bracket-Adjust Bolt | Alternator fitting (2002-11-01 ~ ; TB48DE) |
| 14037-42L0A | Washer-Plain | Alternator fitting (2002-11-01 ~ ; TB48DE) |
- Source
- Public OEM parts-catalog data
- Variants
- 2 / 82
- Category
- 681
- Collected
- 2026-07-27
