Search › Model › SAFARI
SAFARI

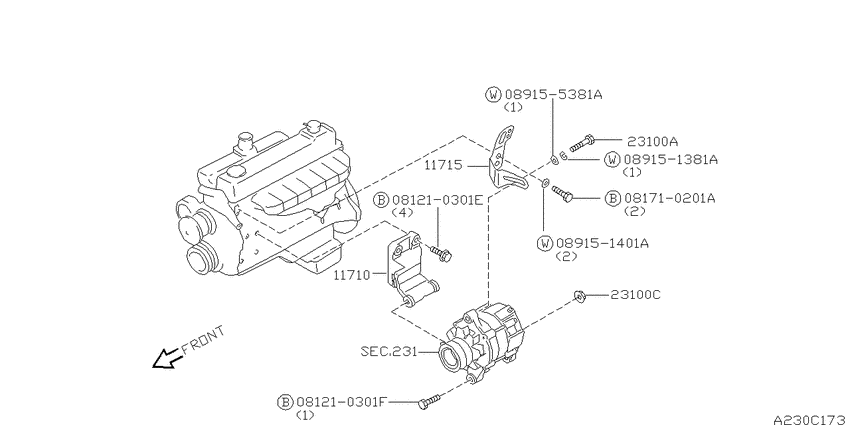

Alternator fitting (1999-09-01 ~ 2002-11-01; TD42T) 5
| # | OEM | Part name |
|---|---|---|
| 11710 | 11710-06J00 | Bracket-Alternator |
| 11715 | 11715-VB200 | Bar-Adjusting, Alternator |
| 23100 | 13020-90000 | Bolt |
| 23100 | 11716-44G00 | Bolt |
| 81710201 | 08171-0201A | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08171-0201A | Bolt-hexagon | Alternator fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 11710-06J00 | Bracket-Alternator | Alternator fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 11715-VB200 | Bar-Adjusting, Alternator | Alternator fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 11716-44G00 | Bolt | Alternator fitting (1999-09-01 ~ 2002-11-01; TD42T) |
| 13020-90000 | Bolt | Alternator fitting (1999-09-01 ~ 2002-11-01; TD42T) |
